Power Box Pro I/O
RED V-RAPTOR – AB

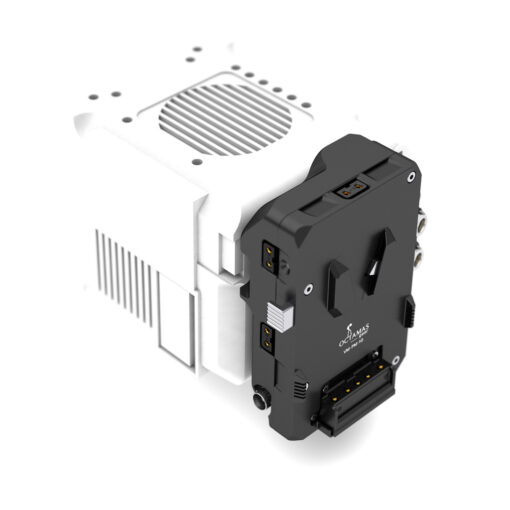

The OCTAMAS gear Power Box Pro I/O RED V-RAPTOR mounts directly to the camera V-Mount and provides a 9pin 0B RED EXT Cable to the Camera Extension port.

Connectors:

1x 9pin 0B RED EXT Cable
1x 3pin 24V Fischer RS (combined_2.5 to 3 Amp) with Trigger protocol
1x 6pin 1B RED DC-IN
1x 4pin 00B RED CTRL
1x 2pin 0B AUX/PWR unregulated direct power from DC or Battery
1x 5pin 0B SMPTE Timecode In/Out
1x BNC Genlock
3x D-Tap (2x DP side 1x on Top) unregulated direct power from DC or Battery

*Requires Camera Software 1.2.6 and up

*Supports most Batteries up to 94mm wide. Wider Batteries require optional off-set plate

*Standard AB-Mount NO Batt. Info pass voltage Display only (depending on Camera Software)

SWISS cage - ONE Cage fits all



PICK YOUR CAMERA SPECIFIC CORE COMPONENTS
ADD ANY CAMERA INDEPENDENT COMPONENTS
INTERCHANGE BETWEEN MULTIPLE AND FUTURE CAMERAS



The minimalistic and smart design offers ease of handling, efficiency and safety. All components respect industry norms so switching and sharing vital components between camera systems is hassle free, making time consuming reconfiguration of set-ups a thing of the past.

OCTAMAS gear products are sleek and great to the touch.
All products are sustainable due to transferability, design, longevity and minimal use of material.
