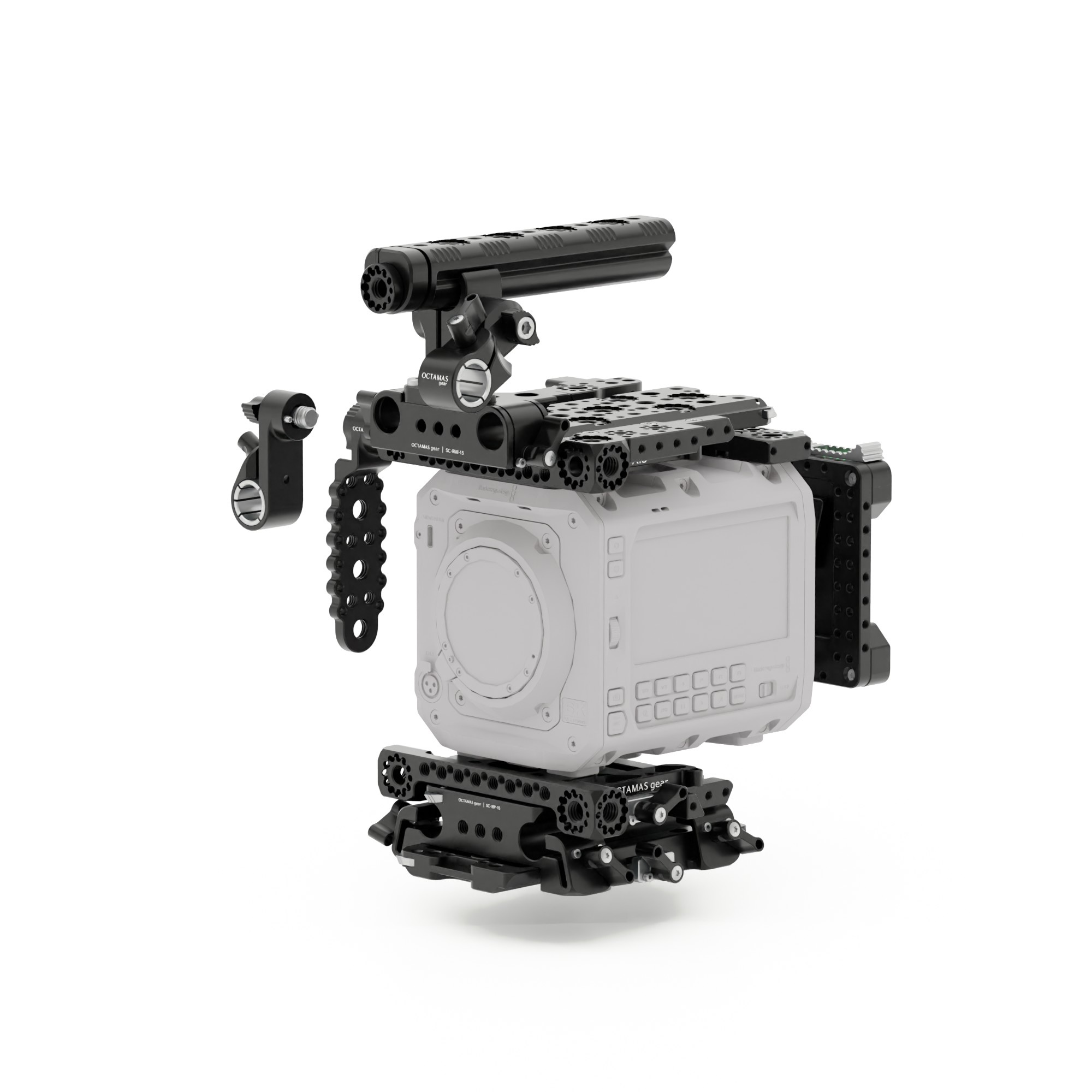

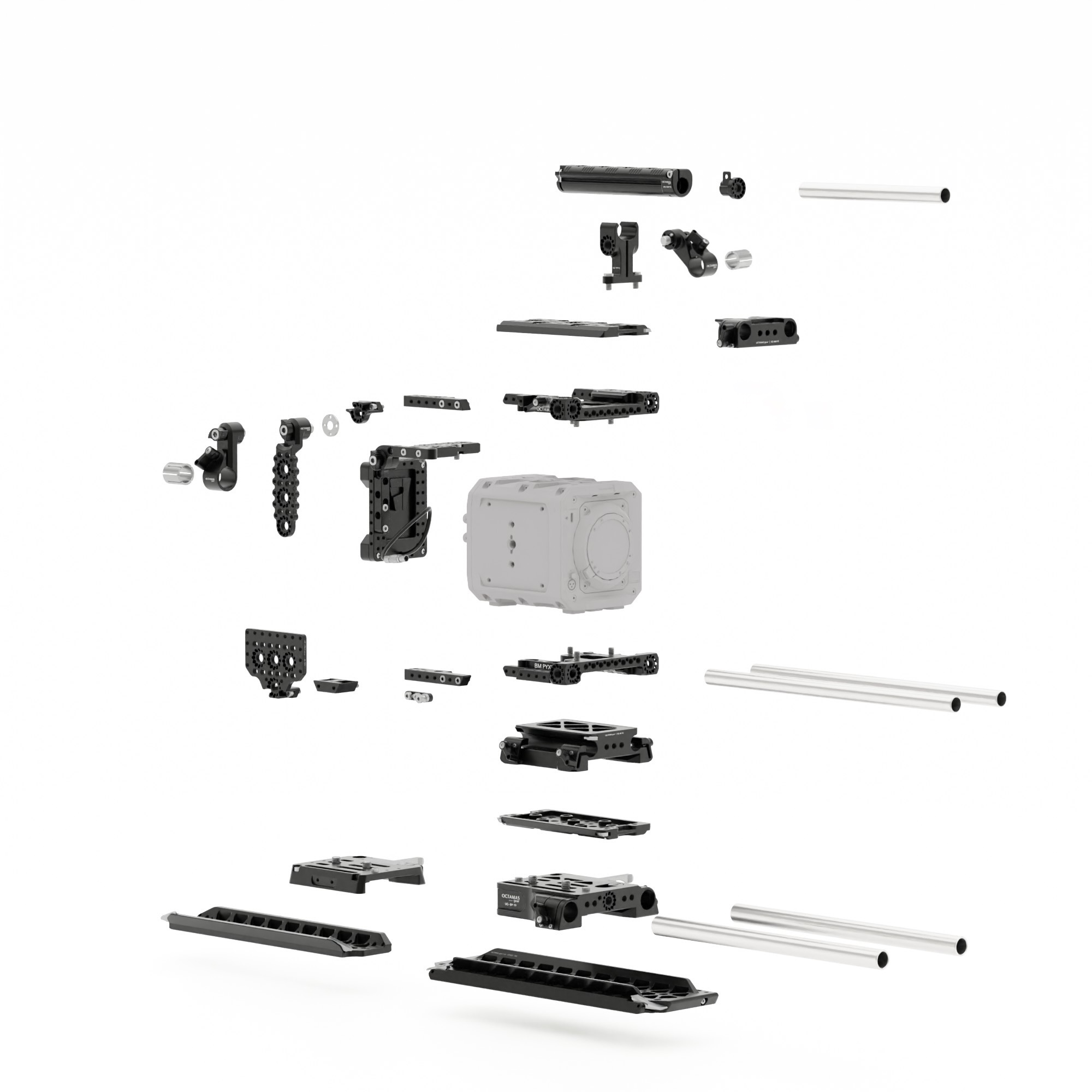

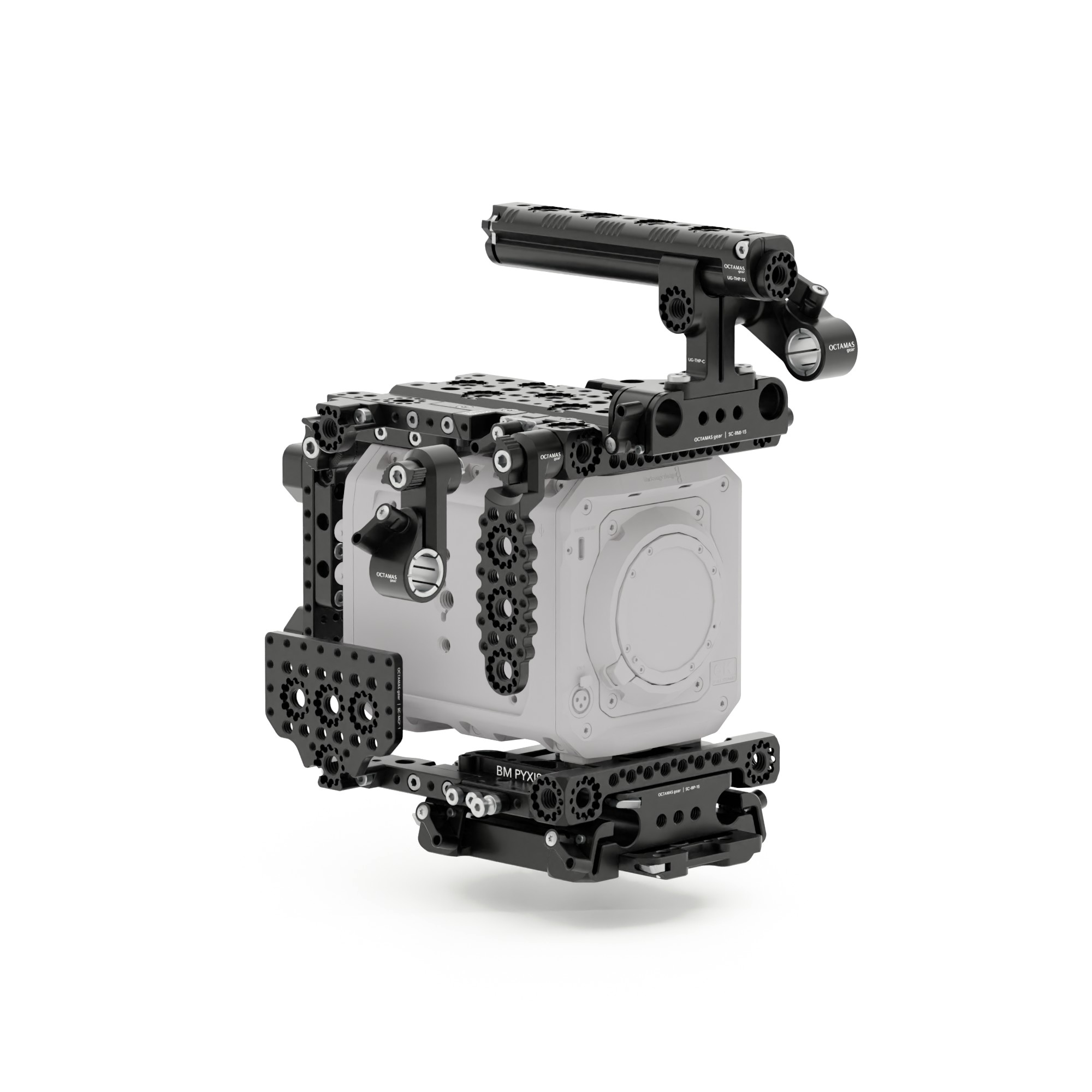

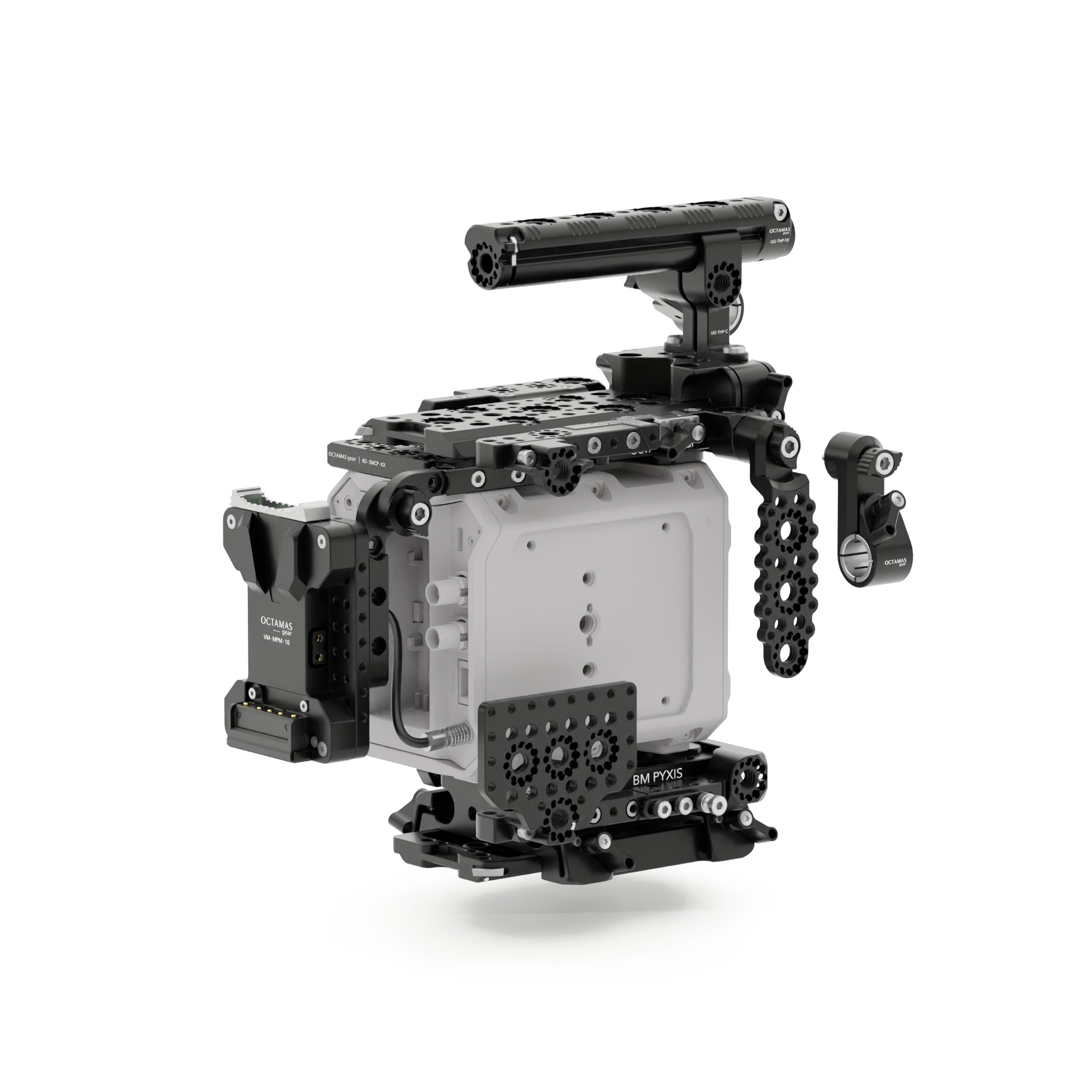

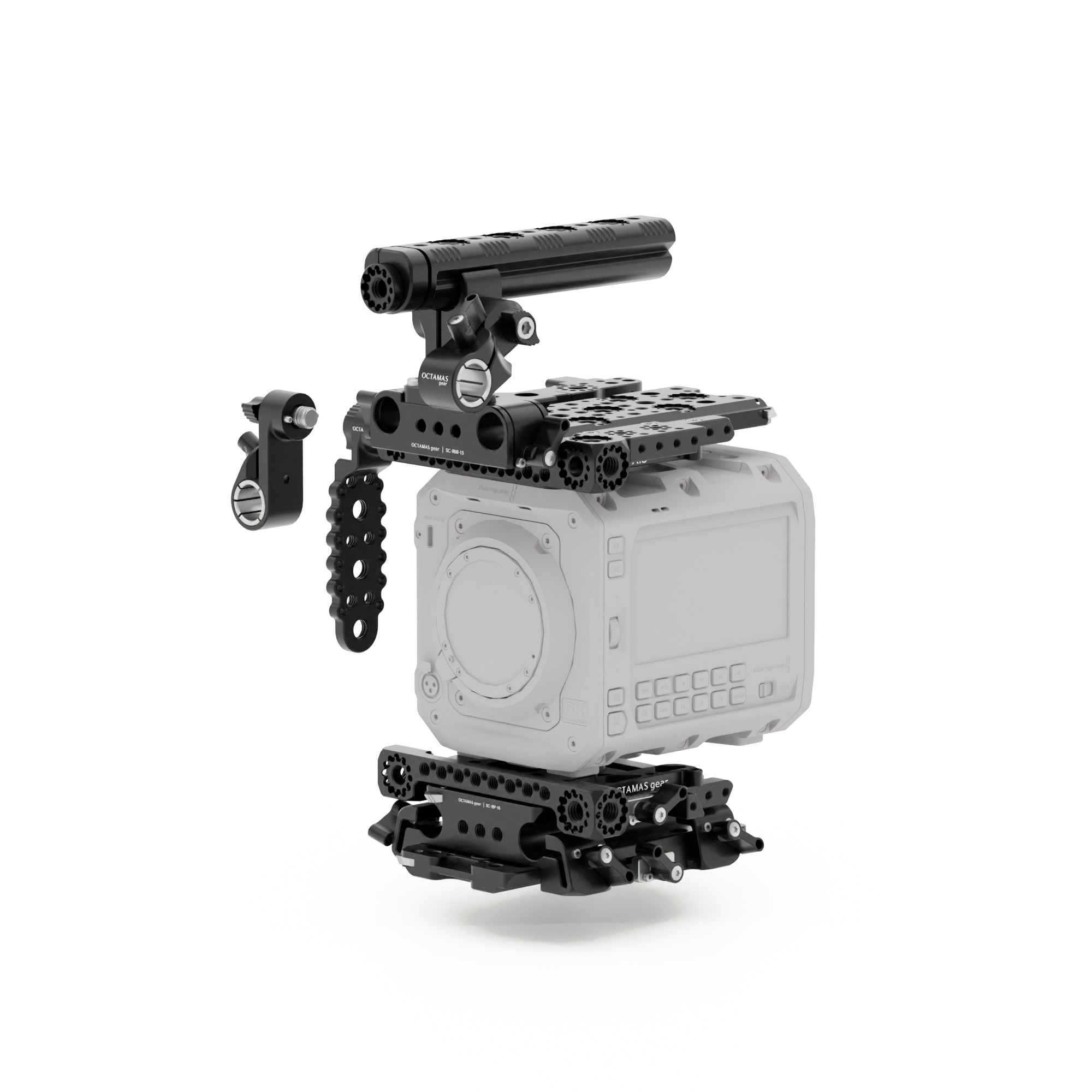

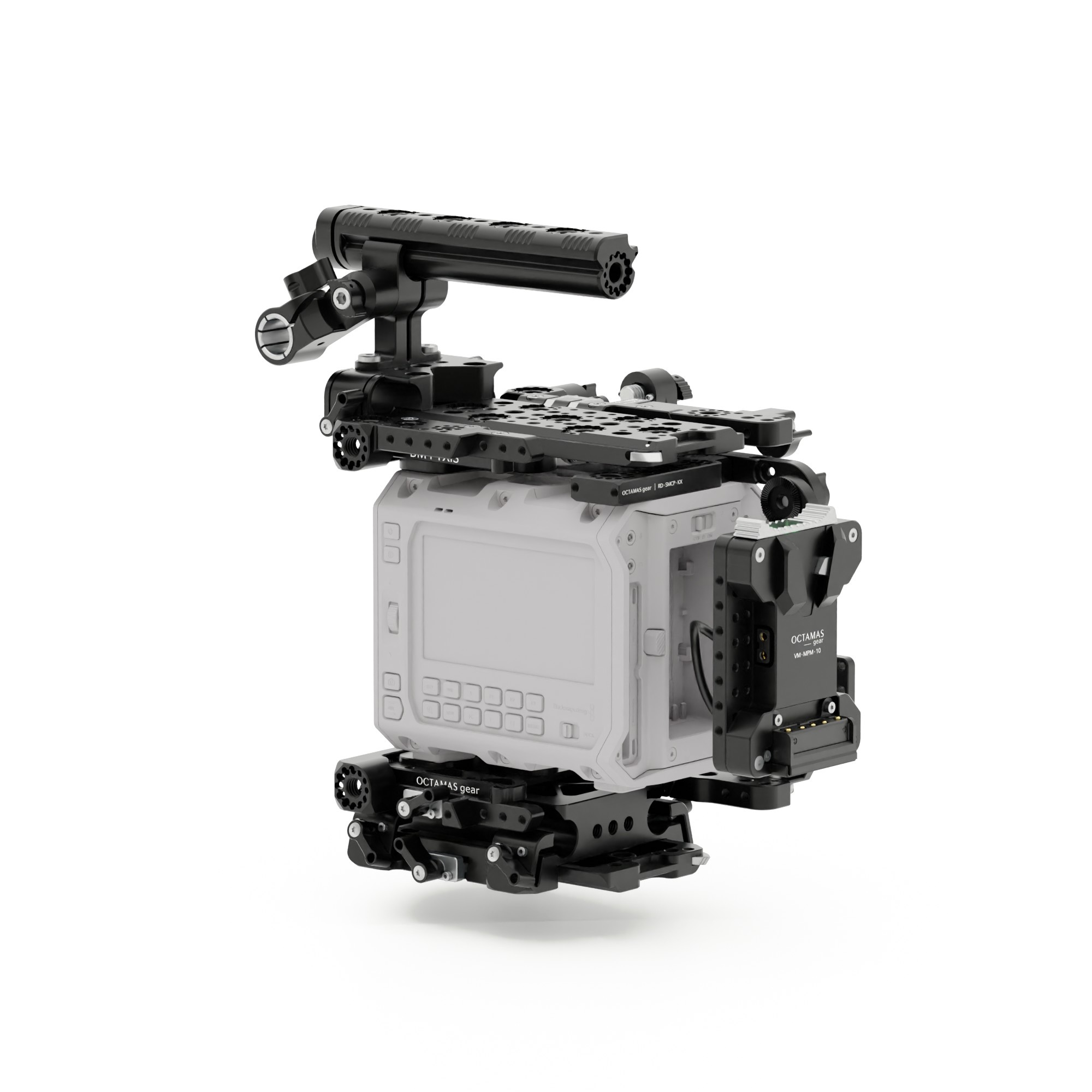

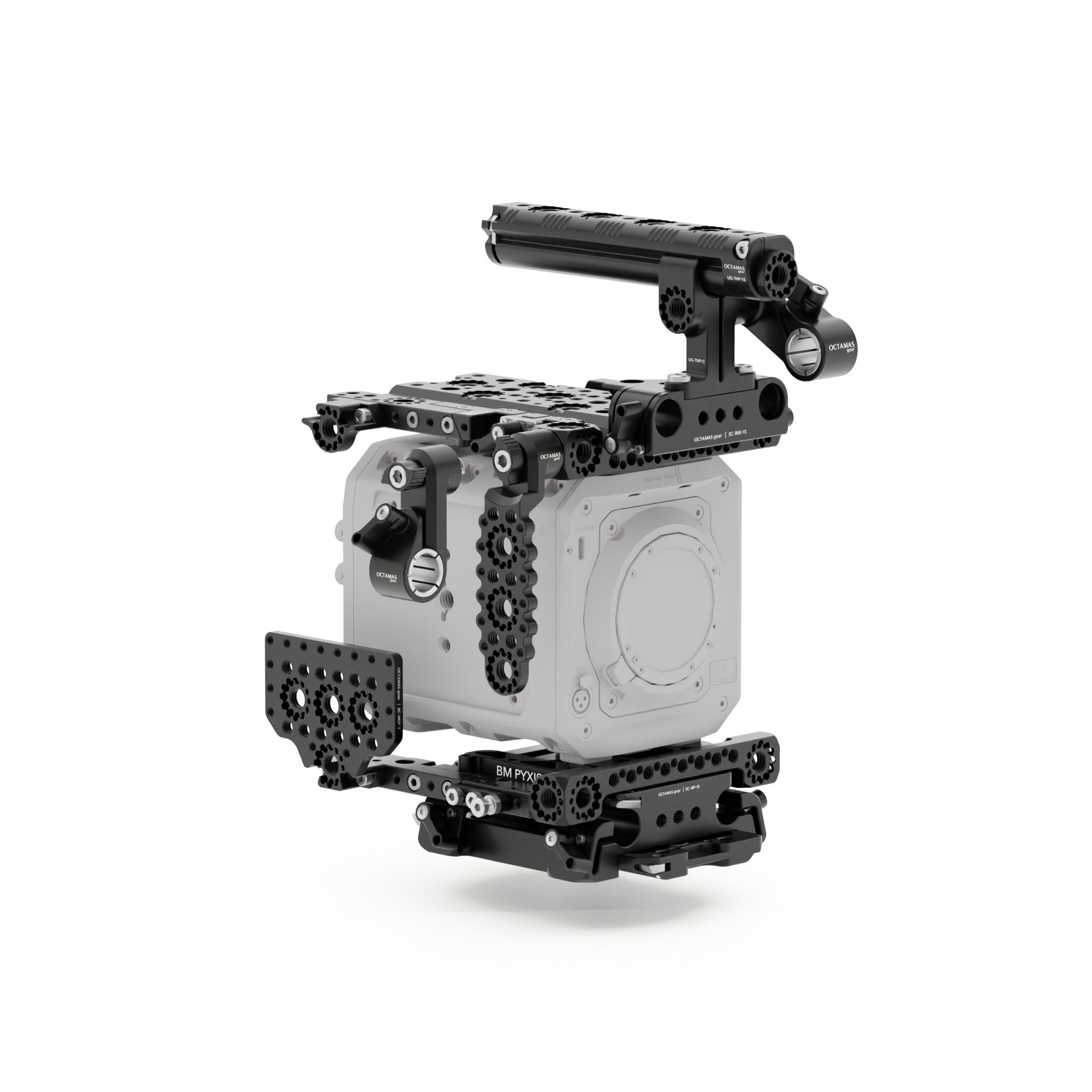

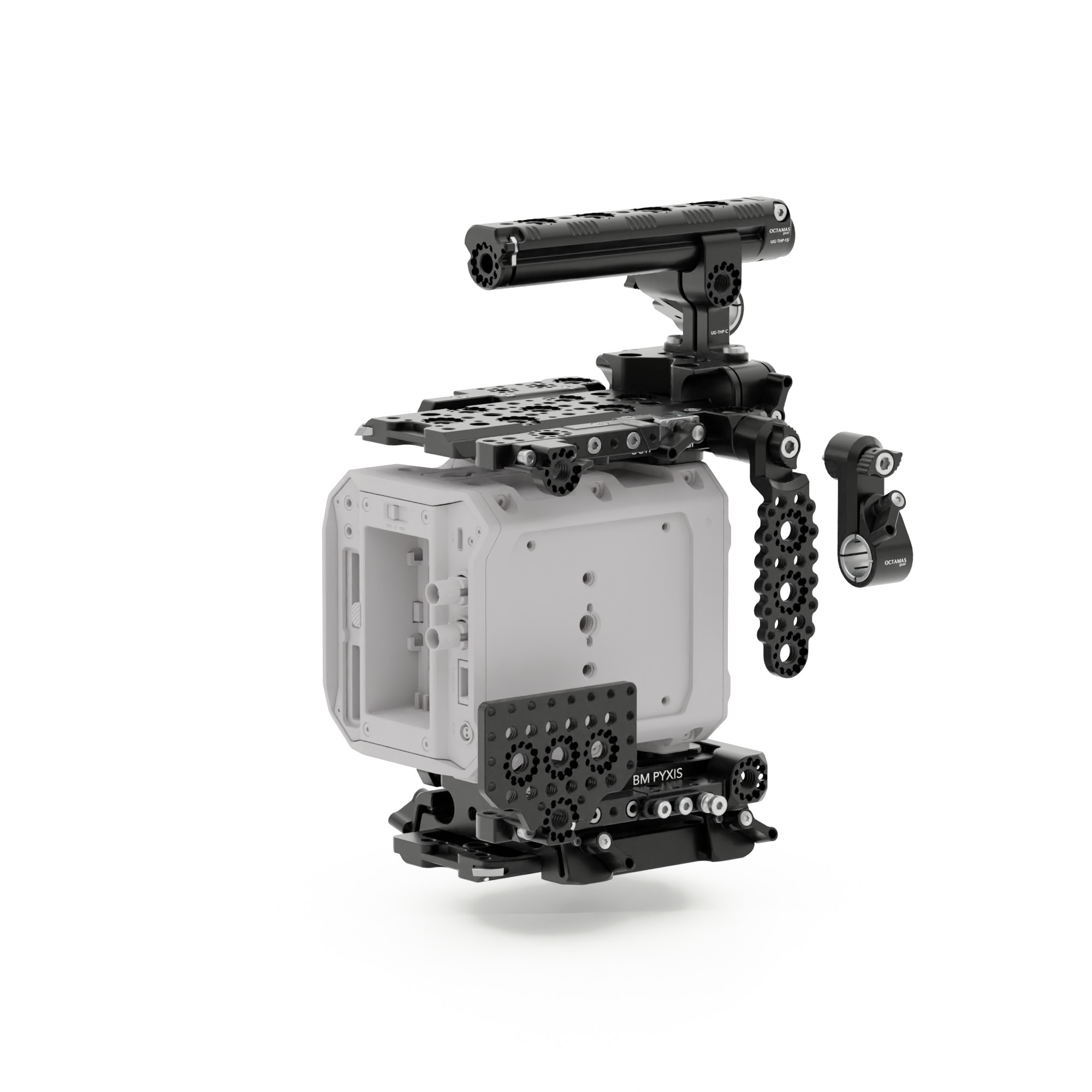

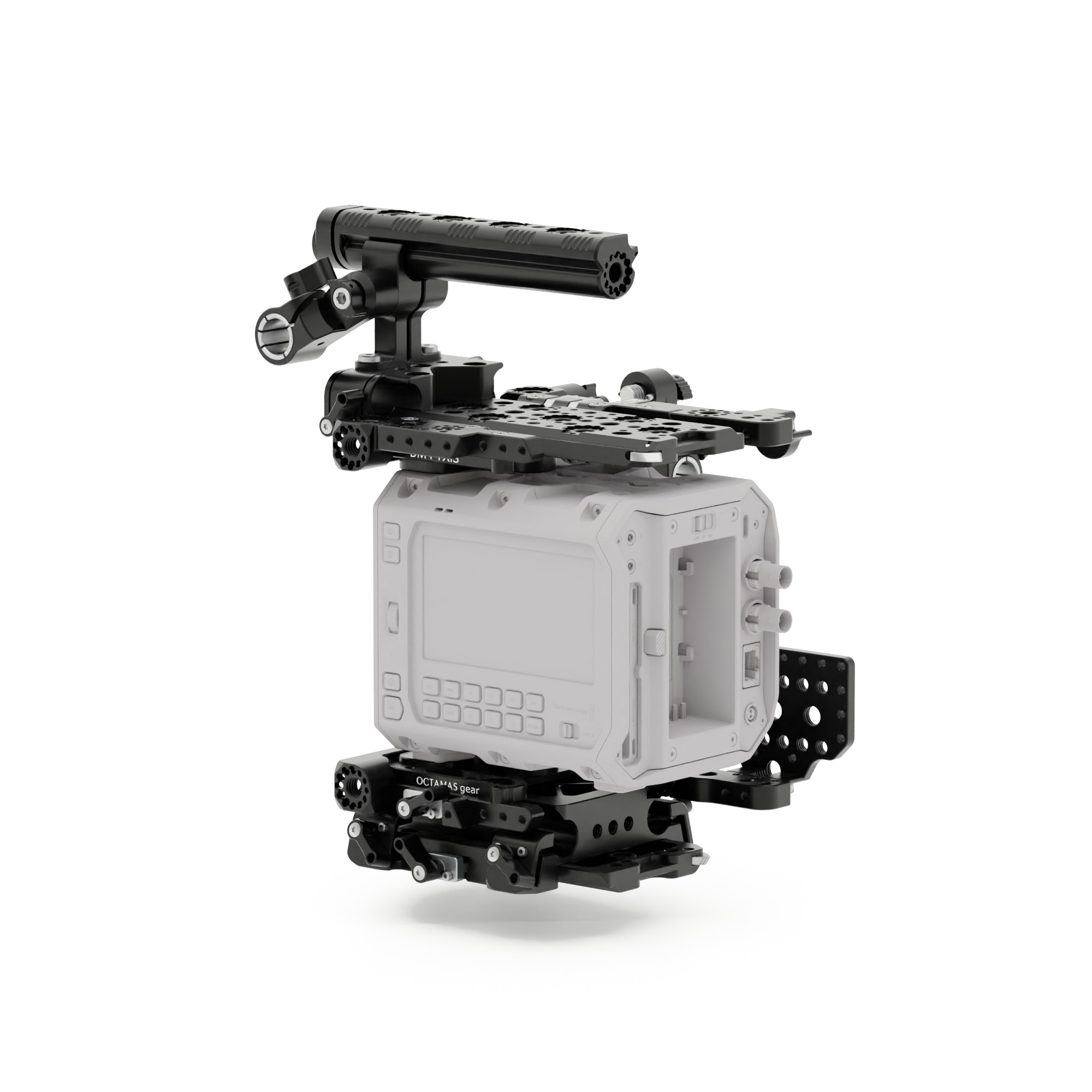

SC Blackmagic PYXIS 6K, 12K – Advanced Set

From: 1,925.00 $ excl. VAT

The SWISS cage Production packages are the professional support set-up for your camera of choice. Advanced Set.

Product Quantity

Optional - Micro Power Plate

1

Optional - Power Box Pro Micro

1

Optional - Power Cable

SC Top Interface Plate - Universal

Blackmagic PYXIS 6K, 12K
1

Focus Hook - Adjustable

In stock ・

1

SC Dovetail Plate - 140

In stock ・

2

SC 15mm Rod Mount Interface

In stock ・

1

Top Handle Pro

In stock ・

1

15mm Mounting Cheese Adapter I

In stock ・

1

SC Bottom Interface Plate - Universal

Blackmagic PYXIS 6K, 12K
1

SC 15mm Interface Bridge Plate

In stock ・

1

SC Mounting Wings

Medium Left/Right Pair
2

19mm Rod Mount

In stock ・

1

19mm Rod Mount 90°

In stock ・

1

19mm to 15mm Reducer

In stock ・

2

Pin-Lock Spacer

In stock ・

1

Mounting Cheese Stick

In stock ・

1

Mounting Cheese Plate I

In stock ・

1

Mounting Cheese Plate II

In stock ・

1

Universal Spacer I

In stock ・

1

Optional - Side Mounting Cheese Plate - Universal

Optional - 19mm Bridge Plate

1

Optional - Bridge Plate Lite

1

In stock ・

SKU: 58006318 Categories: , Tags: , , ,

The SWISS cage Universe respects Industry Norms, allowing the most advanced and complex set-ups like no other camera support system. Switching and sharing vital components between camera systems is hassle free, making time consuming reconfiguration of set-ups a thing of the past.

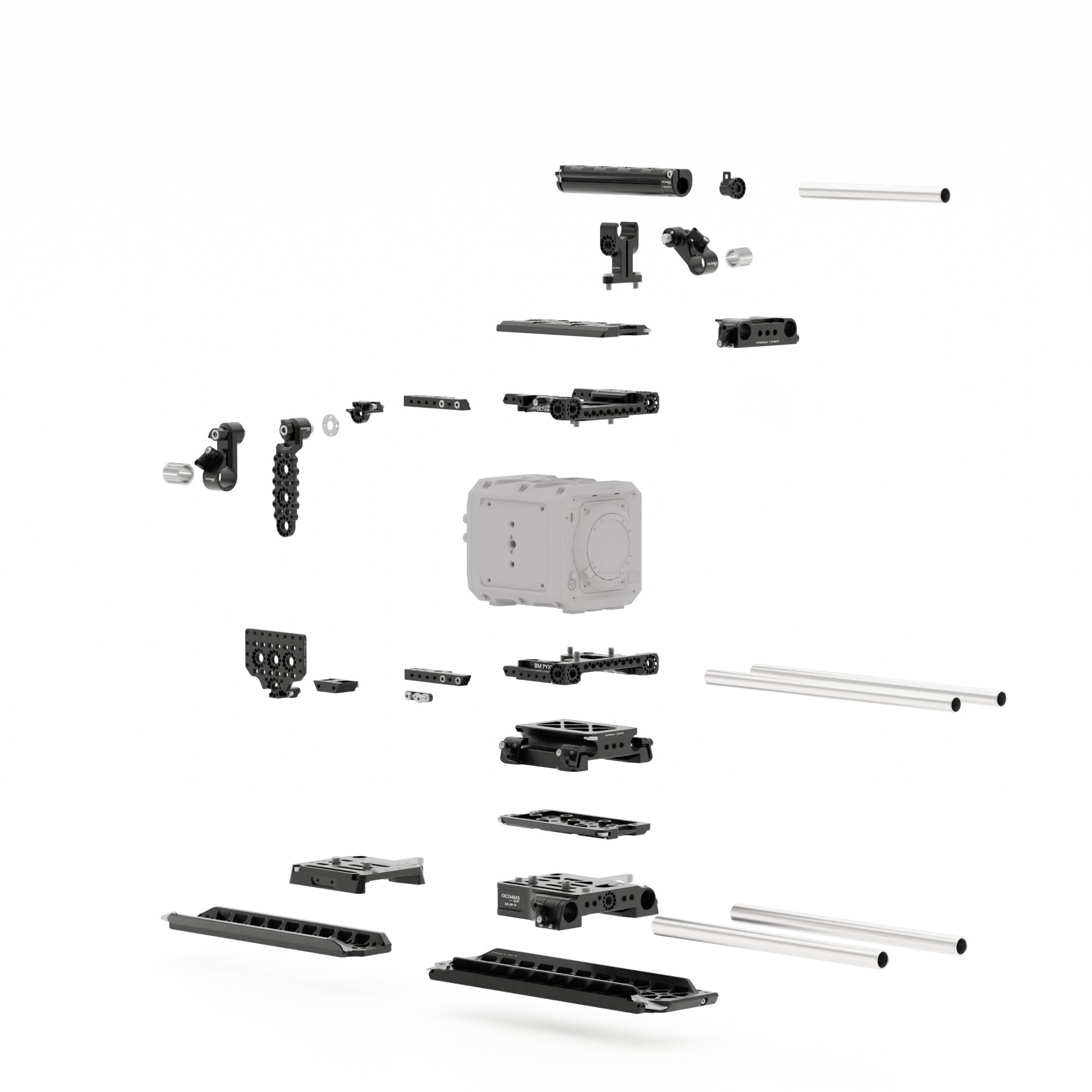

SC Blackmagic PYXIS 6K, 12K – Advanced Set contains all recommended accessories for professional rigging.

Optional - Micro Power Plate

Package Content

1x Micro Power Plate with selected DC Connector and Mounting Option
Tech. Specifications

7075 Aluminum / Black anodizing
–
Micro Power Plate with Dumb V-Mount
Size: 100x70x30mm
Weight: 240g
Battery Mount

Micro V-Mount, Micro Gold-Mount
DC Connector

2pin OB
Mounting Option

Swivel Mount – PYXIS 6K, 12K

Optional - Power Box Pro Micro

Package Content

1x Power Box Pro Micro with selected DC Connector and Mounting Option
Tech. Specifications

7075 Aluminum / Black anodizing
–
Power Box Pro Micro with Dumb V-Mount
Size: 103x88x51mm
Weight: 396g
Battery Mount

Micro V-Mount, Micro Gold-Mount
DC Connector

2pin OB
Mounting Option

Swivel Mount – PYXIS 6K, 12K

Optional - Power Cable

Connectors, Length

2pin OB to 2pin OB – 12", 2pin OB to 2pin OB – 18", D-Tap to 2pin OB – 12", D-Tap to 2pin OB – 18"

SC Top Interface Plate - Universal

Package Content

Canon C400
1x Top Interface Plate
2x Shims
6x M4" Mounting Screws
4x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Canon C300 III / C500 II
1x Top Interface Plate
6x M4" Mounting Screws
4x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Canon C70/C80
1x Top Interface Plate
6x M4" Mounting Screws
2x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Blackmagic PYXIS 6K, 12K
1x Top Interface Plate
6x M4" Mounting Screws
3x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Fujifilm GFX ETERNA / Fujifilm GFX ETERNA Power
1x Top Interface Plate
6x M4" Mounting Screws
4x 3/8" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Freefly EMBER S5K, S2.5K
1x Top Interface Plate
6x M4" Mounting Screws
1x 1/4" Captive Screw
2x M3 Mounting Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Sony FX6
1x Top Interface Plate
4x Shims
6x M4" Mounting Screws
4x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Sony BURANO, VENICE 1+2, RIALTO 1+2 / w. Power Riser
1x Top Interface Plate
4x Shims
4x 1/4" Camera Screws
4x 3/8" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw
Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Size: 93x127x20mm
Weight: 220g

Focus Hook - Adjustable

Package Content

1x Focus Hook
2x M4 Screw
Tech. Specifications

7075 Aluminum / Black anodizing
–
Size: 34x8x16mm
Weight: 8g

SC Dovetail Plate - 140

Package Content

1x SC Dovetail Plate 140
Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Size: 140x68x10mm
Weight: 110g

SC 15mm Rod Mount Interface

Package Content

1x SC 15mm Rod Mount Interface
2x 1/4" Captive Screws
Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Size: 38x104x25mm
Weight: 115g

Top Handle Pro

Package Content

1x Bar Top Handle Pro
1x Bracket Top Handle Pro
2x 1/4" Captive Screws
1x M3 Allen Wrench
Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Size: 150x48x65mm
Weight: 210g

15mm Mounting Cheese Adapter I

Package Content

1x 15mm Mounting Cheese Adapter I
Tech. Specifications

Aluminum 7075 / Black anodized
–
Size: 18x20x26mm
Weight: 4g

SC Bottom Interface Plate - Universal

Package Content

C400 / C300 III / C500 II / C80 / C70
1x Bottom Interface Plate
6x M4 Mounting Screws
4x 1/4 Camera Screws
1x 3/8 Camera Screws
1x M3 Allen Wrench
1x M4 Clamp option Screw

Blackmagic PYXIS 6K, 12K
1x Bottom Interface Plate
6x M4 Mounting Screws
3x 1/4 Camera Screws
1x M3 Allen Wrench
1x M4 Clamp option Screw
Tech. Specifications

7075 Aluminum / Black hard anodizing
–
C400 / C300 III / C500 II / C80 / C70
Size: 125x127x20mm
Weight: 248g

Blackmagic PYXIS 6K, 12K
Size: 95x127x 20mm
Weight: 190g

SC 15mm Interface Bridge Plate

Package Content

1x SC 15mm Interface Bridge Plate
1x M4 Clamp option Screw
Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Size: 130x98x34mm
Weight: 335g

SC Mounting Wings

Package Content

1x SC Mounting Wings
4x M4 Mounting screws
Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Short Left/Right Pair
Size: 52x24x11mm (per Wing)
Weight: 36g (pair)

Short Power Box Left/Right Pair
Size: 72x25x18mm (per Wing)
Weight: 48g (pair)

Medium Left/Right Pair
Size: 78x20x11mm (per Wing)
Weight: 55g (pair)

Long Left/Right Pair
Size: 112x23x11mm (per Wing)
Weight: 78g (pair)

Long Power Box Left/Right Pair
Size: 122x23x11mm (per Wing)
Weight: 82g (pair)

19mm Rod Mount

Package Content

1x 19mm Rod Mount
1x 3/8 Thumb Screw
1x M4 Ratcheting Thumb Screw
Tech. Specifications

7075 Aluminum / Black anodizing
–
Size: 60x35x20mm
Weight: 50g

19mm Rod Mount 90°

Package Content

1x 19mm Rod Mount 90°
1x 3/8 Thumb Screw
1x M4 Ratcheting Thumb Screw
Tech. Specifications

7075 Aluminum / Black anodizing
–
Size: 60x30x34mm
Weight: 55g

19mm to 15mm Reducer

Package Content

1x 19mm to 15mm reducer
Tech. Specifications

A2 Stainless Steel
–
Size: Ø19x21mm
Weight: 5g

Pin-Lock Spacer

Package Content

1x Pin-Lock Spacer
Tech. Specifications

Stainless Steel
–
Size: Ø20 × 4 mm
Weight: 5g

Mounting Cheese Stick

Package Content

1x Mounting Cheese Stick
1x 3/8" Thumb Screw
Tech. Specifications

7075 Aluminum / Black anodizing
–
Size: 105x30x25mm
Weight: 50g

Mounting Cheese Plate I

package content

1x Mounting Cheese Plate
2x M4 Mounting Screws
TECH. SPECIFICATIONS

7075 Aluminum / Black anodizing
–
Size: 18x77x61mm

Weight: 45g

Mounting Cheese Plate II

Package Content

7075 Aluminum / Black anodizing
–
1x Mounting Cheese Plate
2x M4 Mounting Screws
TECH. SPECIFICATIONS

Size: 18x32x20mm

Weight: 15g

Universal Spacer I

package content

1x Universal Spacer
2x M4 Mounting Screws
TECH. SPECIFICATIONS

7075 Aluminum / Black anodizing
–
Size: 24x35x10mm

Weight: 15g

Optional - Side Mounting Cheese Plate - Universal

Package Content

1x Side Mounting Cheese Plate
2x 3/8" Screws
Tech. Specifications

7075 Aluminum / Black anodizing
–
Size:
Min. 160 / max. 200 x 31 x 14 mm
Min. 140mm / max. 180mm Center-to-center thread distance (mounting to camera)

Weight:
Standard: 84g
Rosette: 108g
Module Standard: 42g
Module Rosette: 66g
Version

Rosette

Optional - 19mm Bridge Plate

Package Content

1x 19mm Bridge Plate
2x 3/8" Camera screws
1x M3 Allen Wrench
Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Size: 110x157x32mm
Weight: 435g

Optional - Bridge Plate Lite

Package Content

1x Bridge Plate Lite
2x 3/8" Camera screws
2x M4 Screws
1x M3 Allen Wrench
Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Size: 102x109x18mm
Weight: 230g
