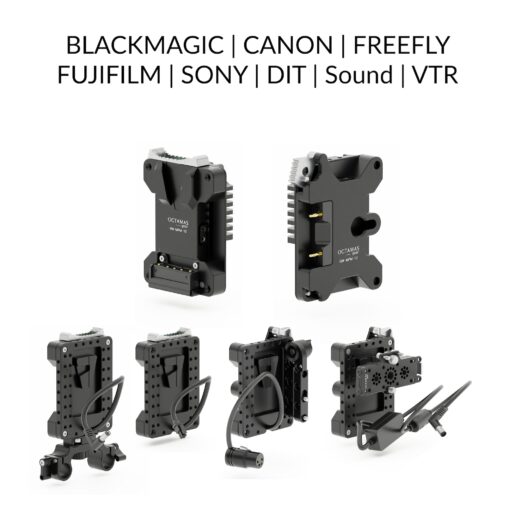

Micro Power Plate

The OCTAMAS gear Micro Power Plate is a proven battery solution featuring various mounting options (sold separately) for SWISS cage and 15mm LWS rods.

Supported Cameras – DC Connectors (out to camera):

• Blackmagic PYXIS 6K, 12K – 2pin OB
• Canon C80, C70 – regulated 24V – 5.5 x 2.5 mm Barrel
• Canon C400, C500 II, C300 III – XLR 4pin
• Freefly EMBER S5K, S2.5K – 4pin Microfit
• Fujifilm GFX ETERNA 55 – V-Mount Male
• Sony FX6, FX9 – regulated 19.5V – Barrel Male
• 2pin OB
  Unregulated direct power from Battery. Compatible with cameras and devices that accept 11–16.8V input.
• XLR 4pin
  Unregulated direct power from Battery. Compatible with cameras and devices that accept 11–16.8V input.
• V-Mount Male
  Unregulated direct power from Battery. Compatible with cameras and devices that accept 11–16.8V input.
• none
  Select this option if you plan to use a D-Tap power cable.

–> Power Cable



Battery Mounts:

• Micro V-Mount with LCD Voltage indicator
• Micro Gold-Mount



Connectors:

• 2x D-Tap



Mounting Options:

• V-Lock Wedge Plate
  Mounts on a stand alone V-Lock Base (V-Mount adapters) or hard mounts via several M4 mounting threads.
• Swivel Mount I
  For mounting the Micro Power Box to Canon C400, C500 II, C300 III and the Black Magic PYXIS 6K, 12K (with additional cheese plate). Features 210° micro rosette swivel with M6 Finger screw and several M4 Mounting holes.
• Riser Plate EMBER S5K, S2.5K
  Positions the camera to the correct 15mm rod height on the SC Bottom Interface Plate EMBER, RED V-RAPTOR
• 15mm Power Box Mount
  Compatible with any camera, Canon C80, C780, Sony FX9, etc.
• none
  Select this option if you have V-Mount Male selected as DC Connector
• V-Lock Base
  Mounting accessory for our Power Solutions or any V-Mount battery — easily attaches to the back, side, or top of the camera, or even to a monitor.
