Power Box Pro
Price range: 781.00 € through 1,380.00 € excl. VAT

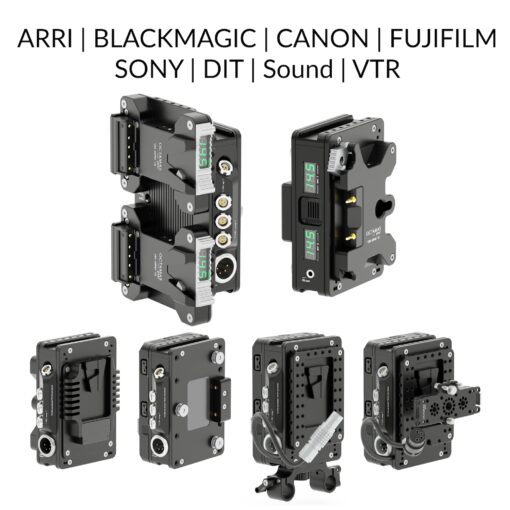

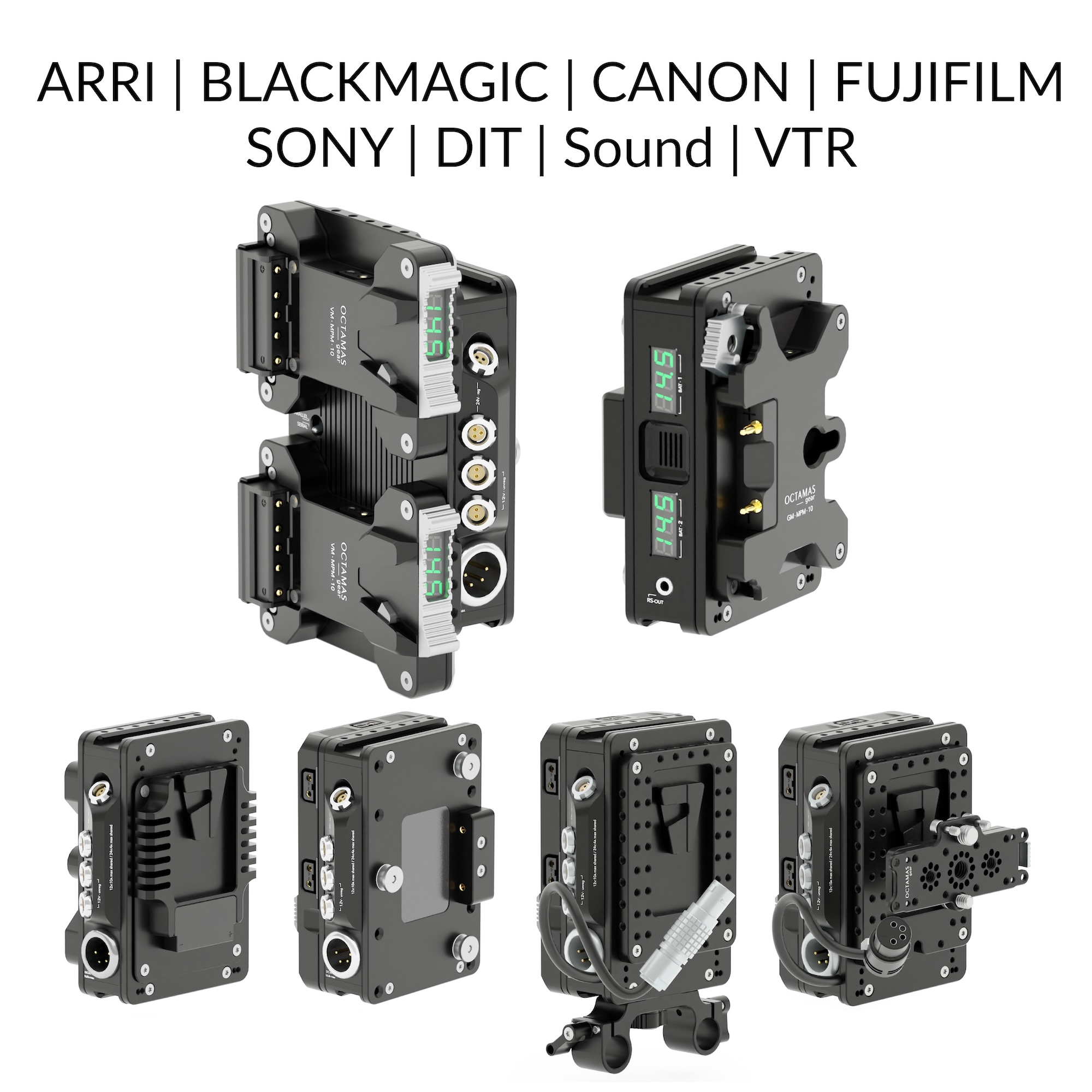

For 12V cameras from ARRI, Blackmagic Design, Canon, RED Digital Cinema and Sony – DIT, Sound, VTR.
The OCTAMAS gear Power Box Pro is a proven battery solution featuring various industry standard accessory power connectors. The Power Box Pro also offers top/bottom mounting options for SWISS cage and 15mm LWS rods.
Supports LANC and Contact Closure (3-pin Fischer) trigger protocol (optional Trigger Cable required).
–> Power Cable
–> Trigger Cable
DIT, Sound, VTR
Power anything – from DIT carts, sound gear, and VTR to computers, monitors, video recorders, and even your phone or tablet.
Supported Cameras – DC Connectors:

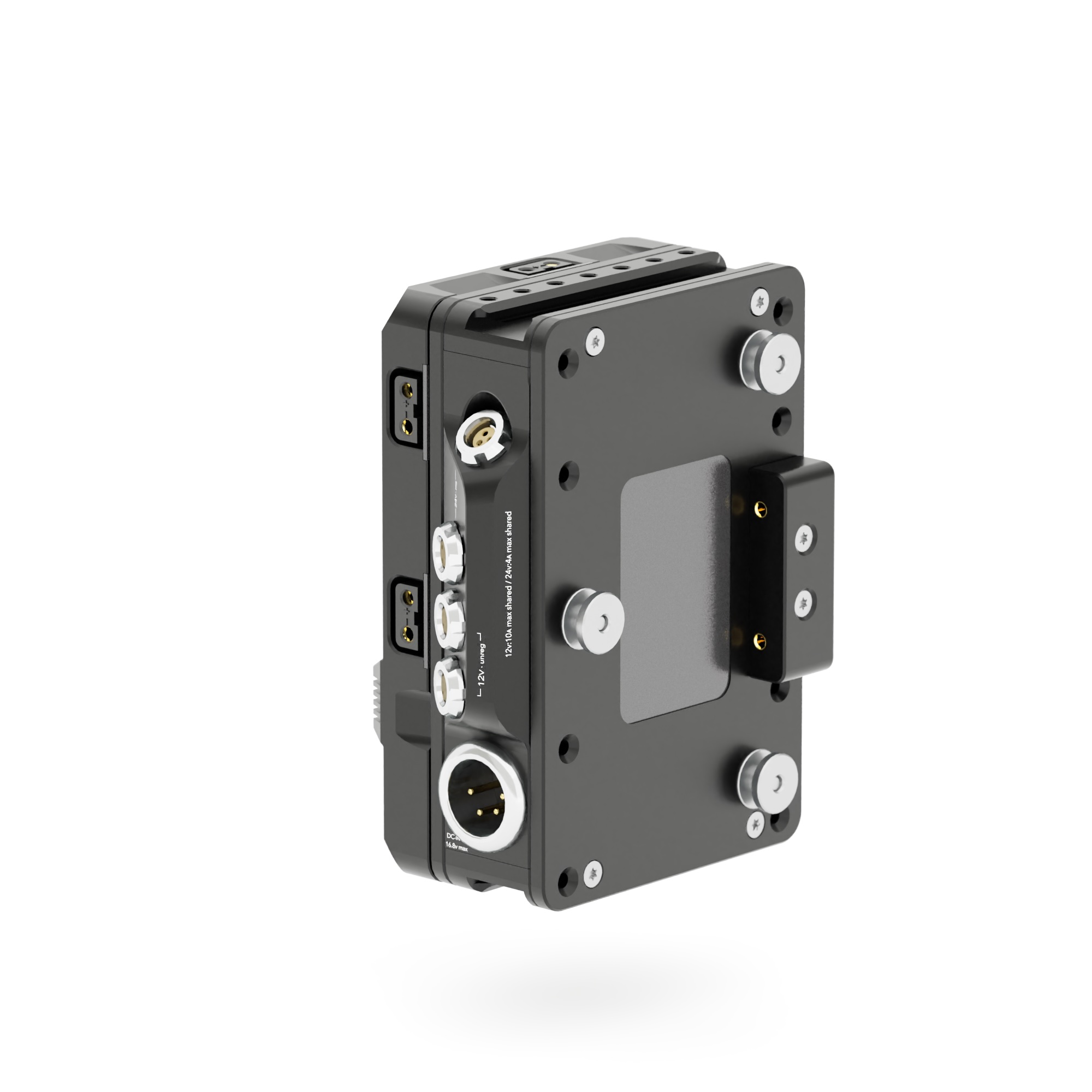

- V-Mount Male
Blackmagic URSA
Fujifilm GFX ETERNA 55
RED V-RAPTOR XL
Sony BURANO, VENICE 1 + 2
Any camera with V-Mount plate and 11–16.8V input. - Gold-Mount Male
Blackmagic URSA
RED V-RAPTOR XL
Any camera with Gold-Mount plate11–16.8V input. - XLR 4pin
Canon C400, C500 II, C300 III
Various Monitors i.e. - ARRI 8pin
ARRI Alexa Mini + Mini LF
Parallel / Serial Switch
- With dual battery mounts
- In parallel mode both mounted batteries are discharged simultaneously. If one of both batteries is of lower charge, then the higher charged battery will first be discharged to achieve the same level and then parallel discharge of both batteries starts.
- In serial mode the top battery ist first discharged until 12.4V – then the intelligence switches to the other battery.
- Hot-Swap: Both batteries can be hot-swapped at any given time.
Battery Mounts:
- V-Mount

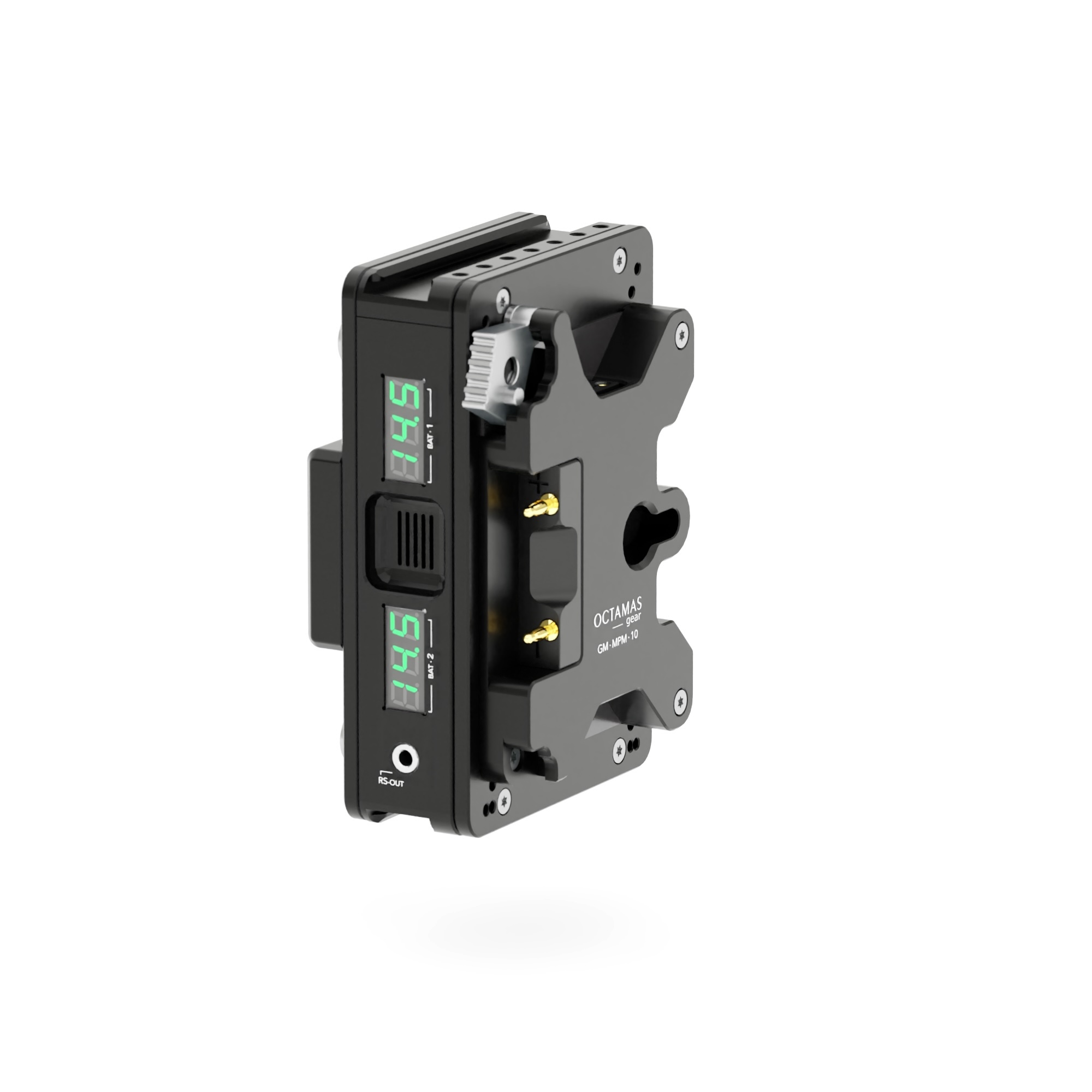

- Gold-Mount

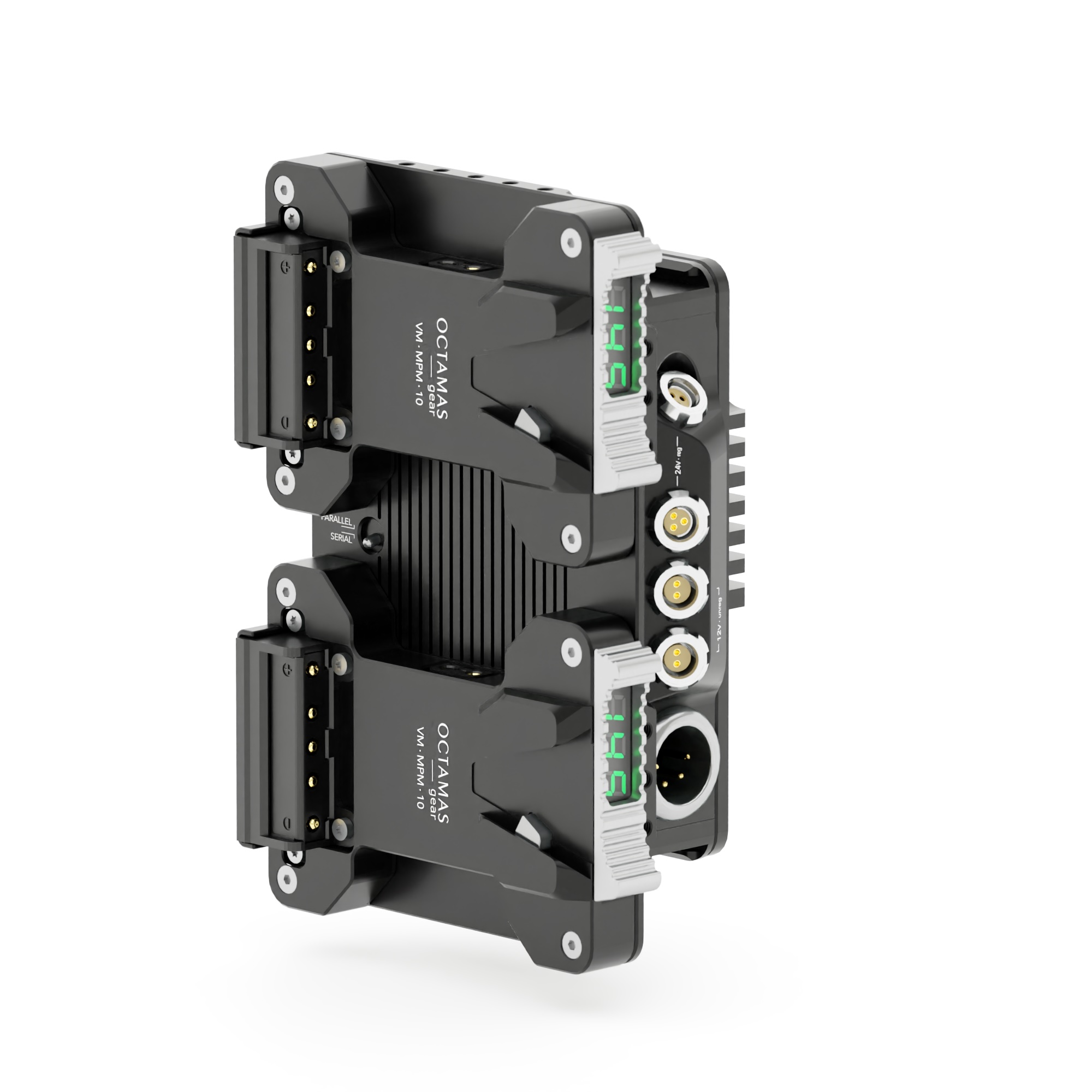

- Dual V-Mount

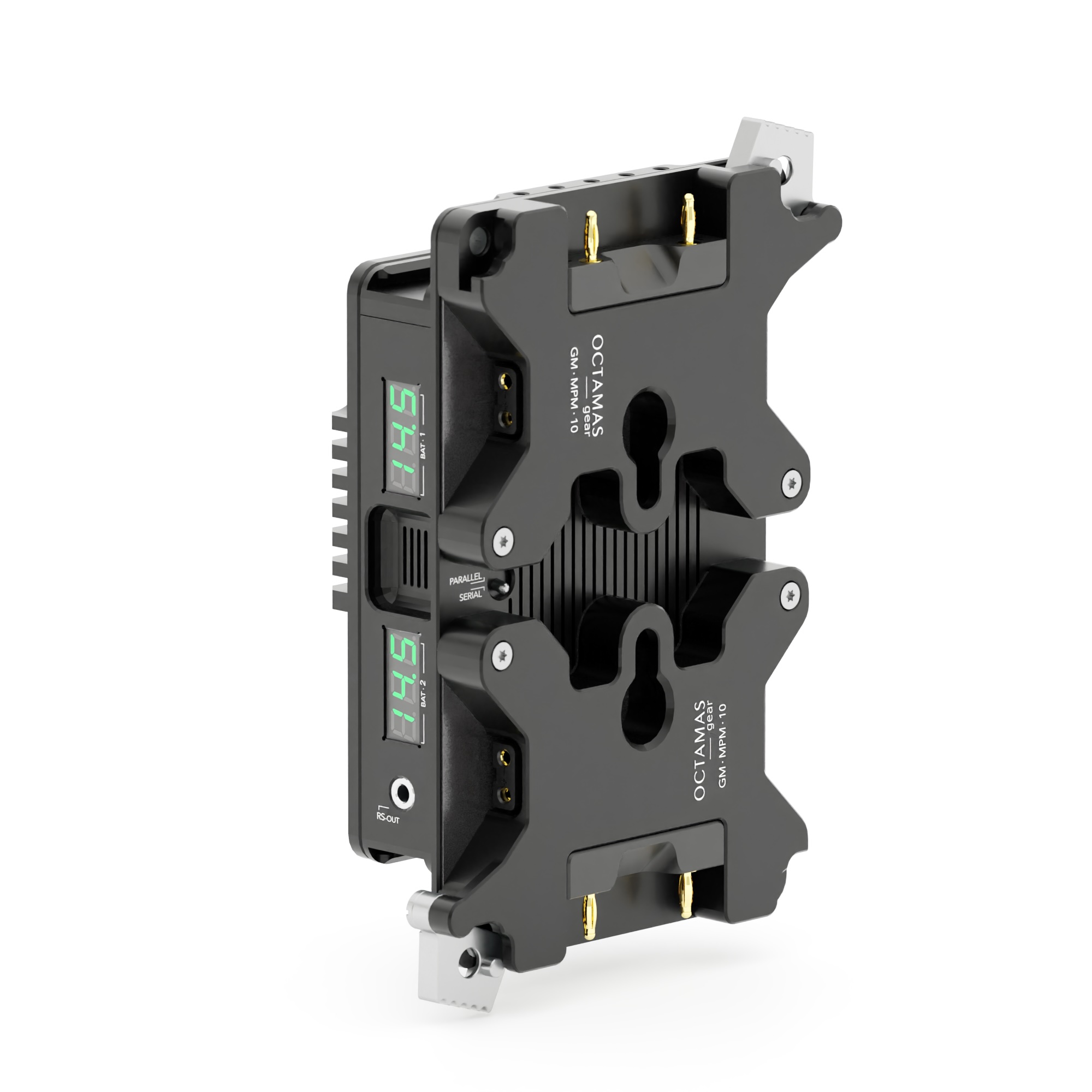

- Dual Gold-Mount
Connectors:

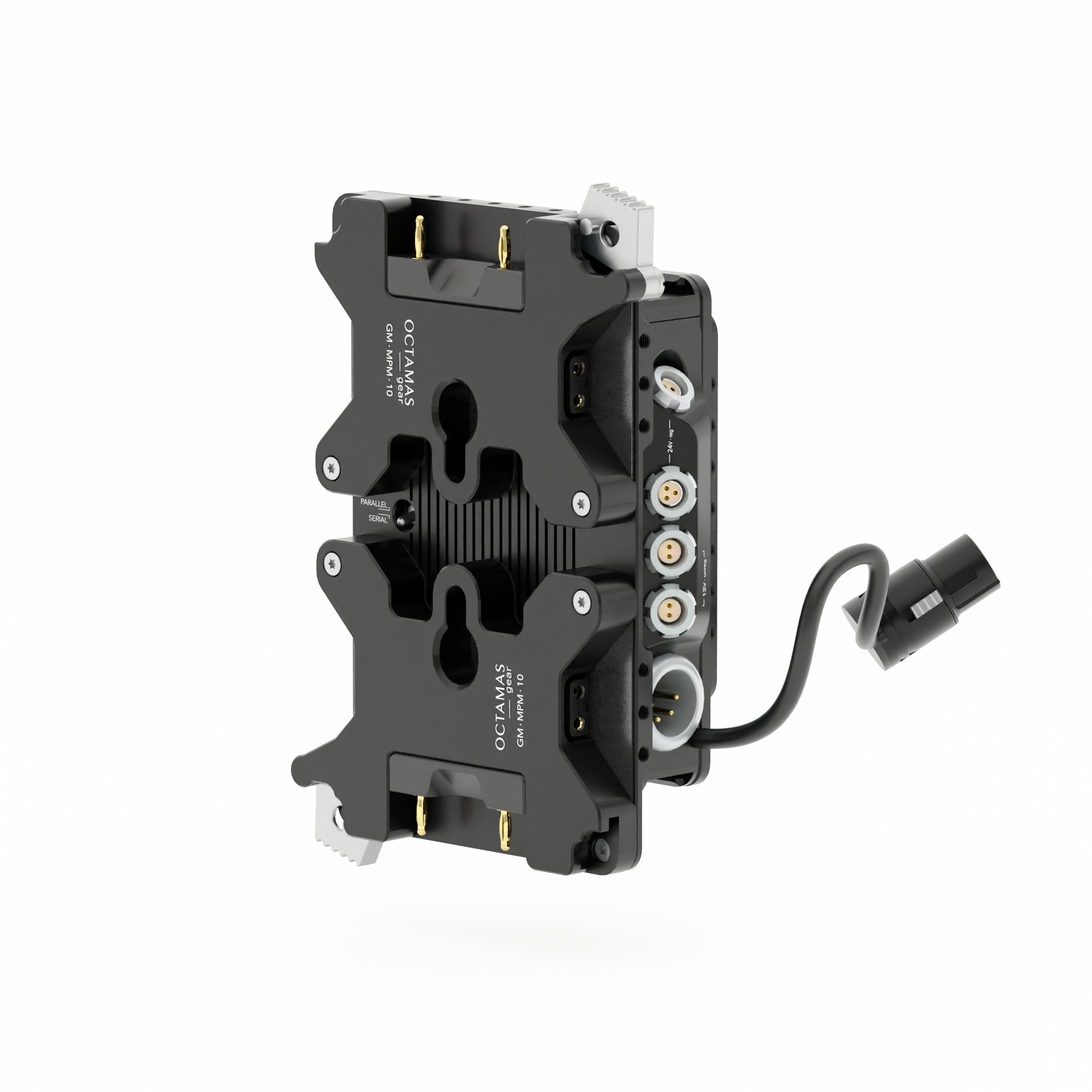

- 1x 4pin XLR 12V DC IN*
- 2x 3pin 24V Fischer RS regulated power (combined 4 Amp max) with RS Trigger Function implemented (optional cable required)
- 1x USB-C PD3.1 (Maximum 65W / 5V3A, 9V3A, 12V3A)
- 2x 2pin 0B AUX/PWR unregulated direct power from DC or Battery
- 2-4x D-Tap
- 1x 3.5mm Jack RS Trigger Out, supporting LANC (Canon / Fujifilm / Sony) and Contact Closure (3-Pin Fischer) for Run/Stop signal output. Compatible with cameras featuring LANC or 3-Pin Fischer RS input. Optional Trigger Cable required.
- LED 1 Battery voltage**
- LED 2 DC IN voltage**
*DC IN is microprocessor controlled to prevent charge/discharge of onboard battery when external battery is connected. DC IN is prioritized over onboard Battery. Hotswap capability between on-board battery and DC power input for uninterrupted power supply.
** +/- 0.2V accuracy
Mounting Options:
- V-Lock Wedge Plate
Mounts on a stand alone V-Lock Base (V-Mount adapters) or hard mounts via several M4 mounting threads. - SC Long Power Box Mount Top/Bottom
For mounting the Power Box Pro to our SWISS cage with our Wing system. Perfect fit for the ARRI Alexa Mini, Mini LF. Requires SC Mounting Wings Long Power Box Left/Right Pair. - 15mm Power Box Mount
Compatible with any camera. - none
Select this option if you have selected V-Mount Male or Gold-Mount Male as DC Connector - V-Lock Base
Mounting accessory for our Power Solutions or any V-Mount battery — easily attaches to the back, side, or top of the camera, or even to a monitor. - SC Short Power Box Mount Top/Bottom
For mounting the Power Box Pro to our SWISS cage with our Wing system. Perfect fit for the Sony VENICE RIALTO 1 + 2 Extension System.
SWISS cage - ONE Cage fits all
PICK YOUR CAMERA-SPECIFIC COMPONENTS
ADD ANY CAMERA-INDEPENDENT COMPONENTS
INTERCHANGE BETWEEN MULTIPLE AND FUTURE CAMERAS
The minimalistic and smart design offers ease of handling, efficiency and safety. All components respect industry norms so switching and sharing vital components between camera systems is hassle free, making time consuming reconfiguration of set-ups a thing of the past.
OCTAMAS gear products are sleek and great to the touch.
All products are sustainable due to transferability, design, longevity and minimal use of material.
| Package Content | 1x Power Box Pro with selected Battery Mount, DC Connector and Mounting Option. |
|---|---|
| Tech. Specifications | 7075 Aluminum / Black anodizing |
| Battery Mount | V-Mount, Gold-Mount, Dual V-Mount, Dual Gold-Mount |
| DC Connector | V-Mount Male, Gold-Mount Male, XLR 4pin, ARRI 8pin, none |
| Mounting Option | V-Lock Wedge Plate, SC Long Power Box Mount, 15mm Mount, none, V-Lock Base, SC Short Power Box Mount |
