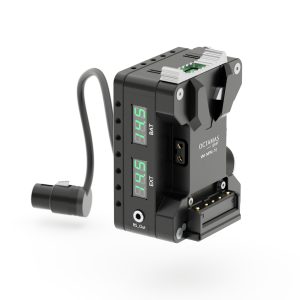

Power Box Pro Micro

The OCTAMAS gear Power Box Pro Micro is a proven battery solution featuring various industry standard accessory power connectors and two LCDs for EXT. and BATT input monitoring. The Power Box Pro Micro also offers various mounting options (sold separately) for SWISS cage and 15mm LWS rods.

Supported Cameras – DC Connectors (out to camera):

• Blackmagic PYXIS 6K, 12K – 2pin OB

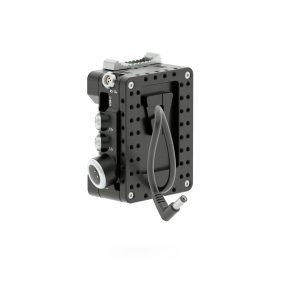

• Canon C80, C70 – regulated 24V – 5.5 x 2.5 mm Barrel
• Canon C400, C500 II, C300 III – XLR 4pin
• Freefly EMBER S5K, S2.5K – 4pin Microfit
• Fujifilm GFX ETERNA – V-Mount Male

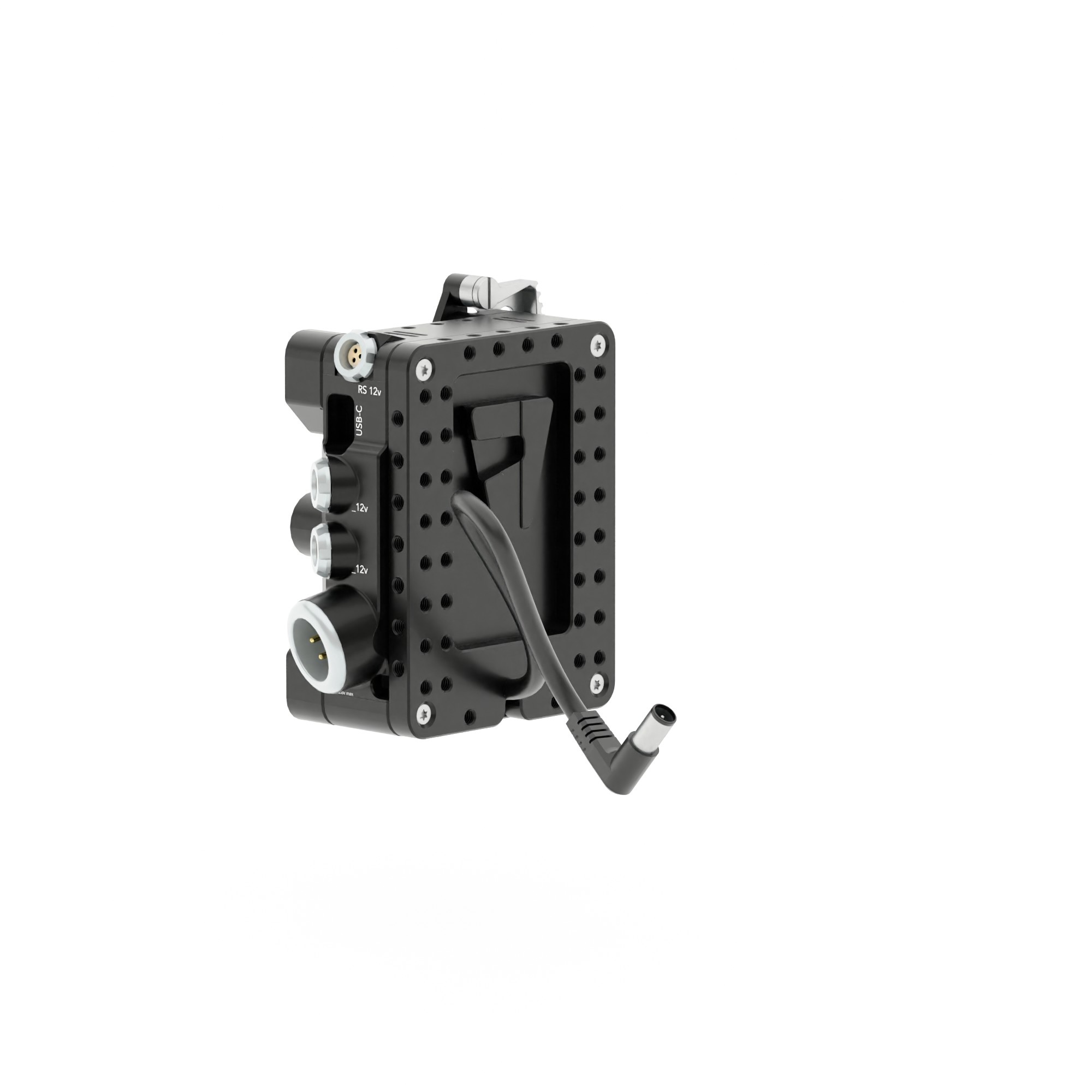

• Sony FX6, FX9 – regulated 19.5V – Barrel Male
• Sony BURANO, VENICE 1+2 – V-Mount Male

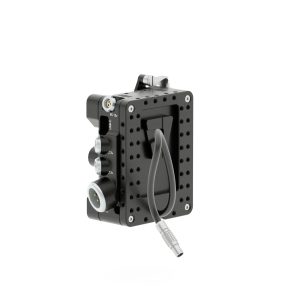

• 2pin OB
  Unregulated direct power from Battery. Compatible with cameras and devices that accept 11–16.8V input.

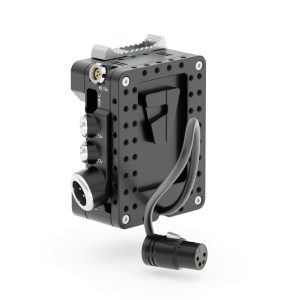

• XLR 4pin
  Unregulated direct power from Battery. Compatible with cameras and devices that accept 11–16.8V input.
• V-Mount Male
  Unregulated direct power from Battery. Compatible with cameras and devices that accept 11–16.8V input.
• none
  Select this option if you plan to use a D-Tap power cable.

–> Power Cable
–> Trigger Cable



Battery Mounts:

• Micro V-Mount with LCD Voltage indicator
• Micro Gold-Mount



Connectors:

• 1x USB C PD3.1 (Maximum 65W / 5V3A, 9V3A, 12V3A)
• 1x 3pin 12V Fischer RS unregulated with RS Trigger Function implemented (optional cable required)
• 2x 2pin 0B AUX/PWR unregulated direct power from DC or Battery
• 2x D-Tap
• 1x 4pin XLR 12V DC IN*
• 1x 3.5mm Jack RS Trigger supporting LANC protocol for Canon and Sony cameras and also Schmitt protocol to connect to cameras with 3pin RS Fischer port. Optional Run/Stop (Trigger) cables available.

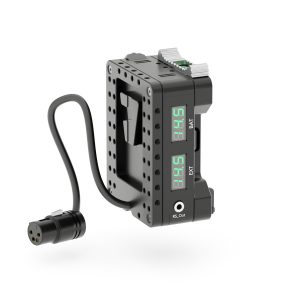

• LED 1 Battery voltage**
  LED 2 DC IN voltage**

*DC IN is microprocessor controlled to prevent charge/discharge of onboard battery when external battery is connected. DC IN is prioritized over onboard Battery. Hotswap capability between on-board battery and DC power input for uninterrupted power supply.
** +/- 0.2V accuracy



Mounting Options:

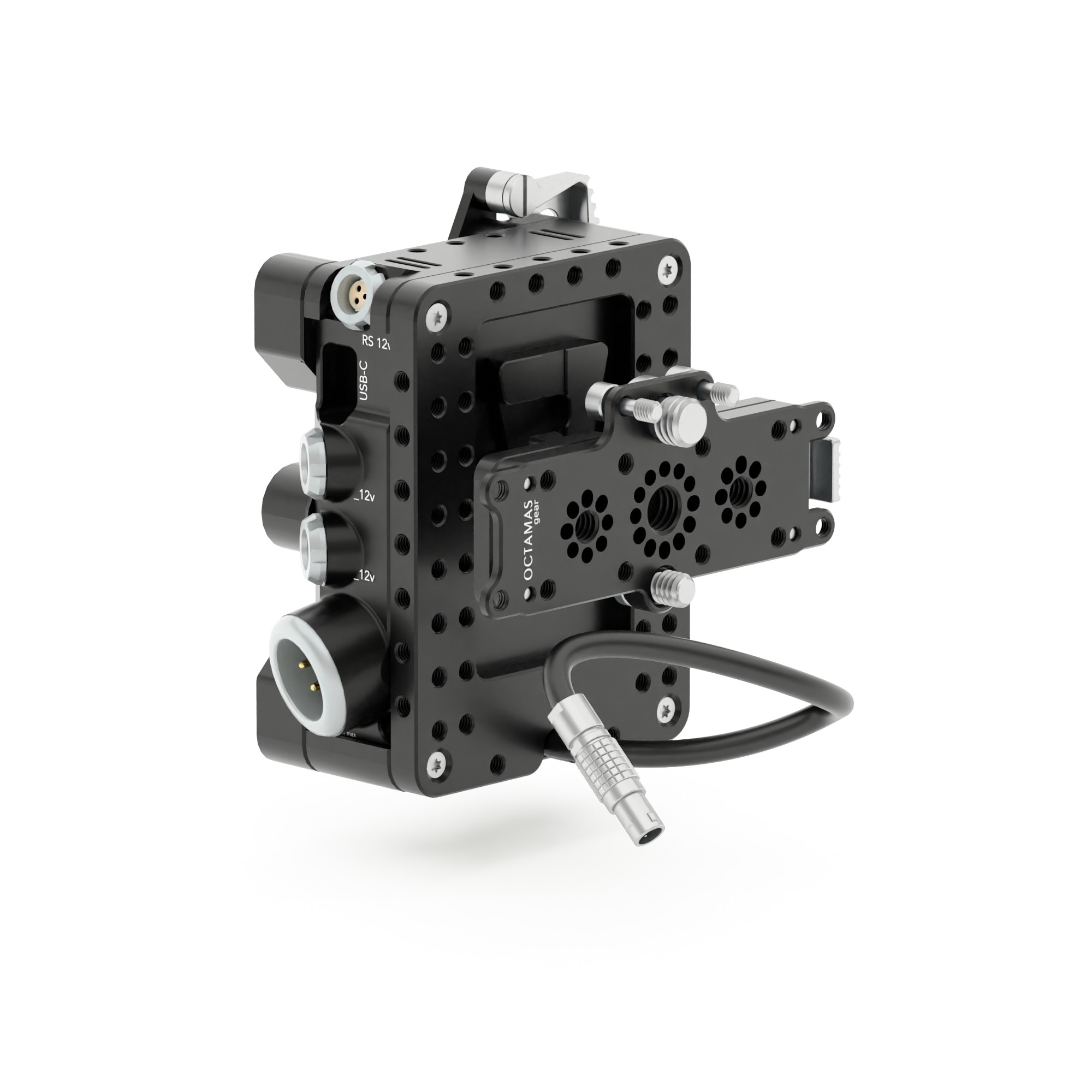

• V-Lock Wedge Plate
  Mounts on a stand alone V-Lock Base (V-Mount adapters) or hard mounts via several M4 mounting threads.

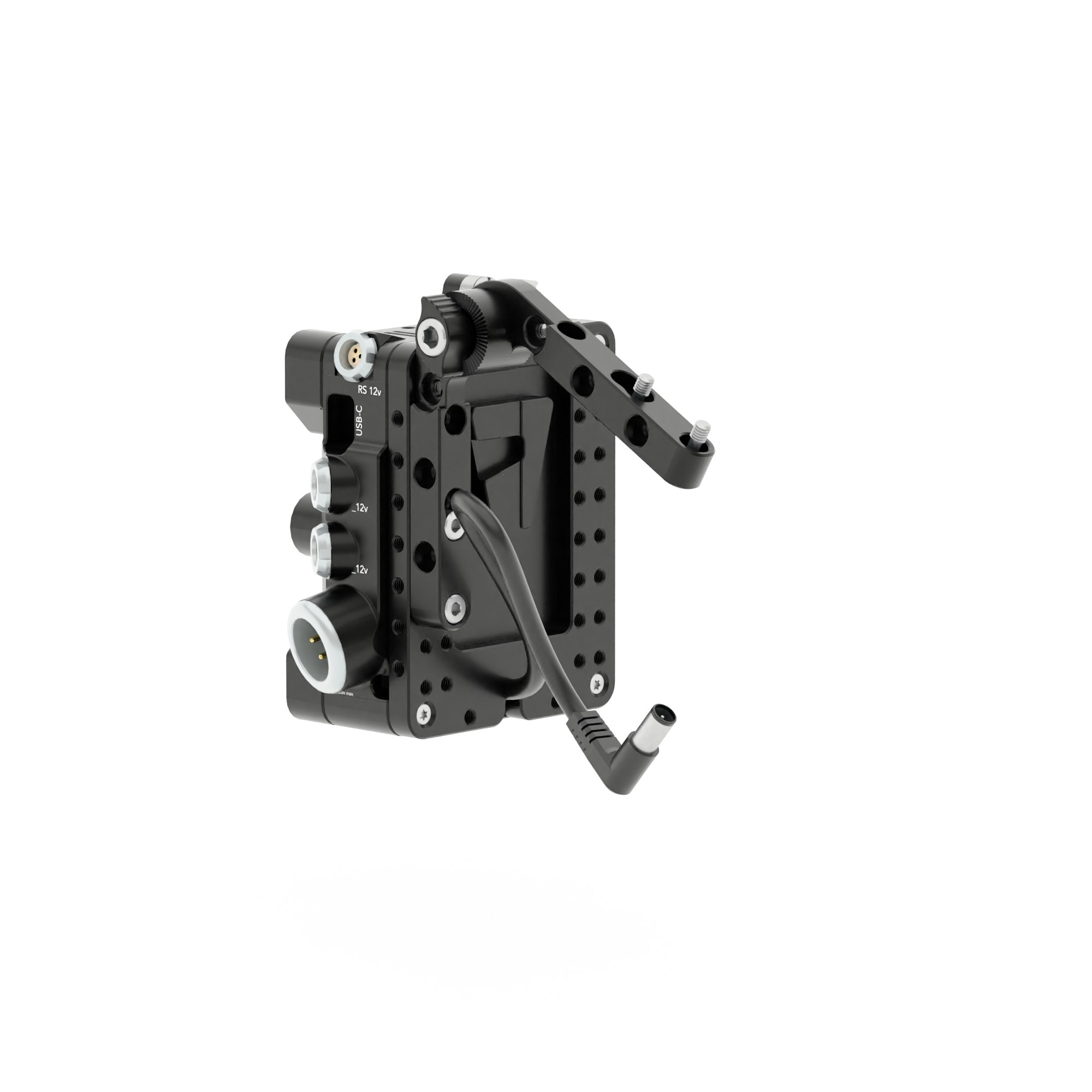

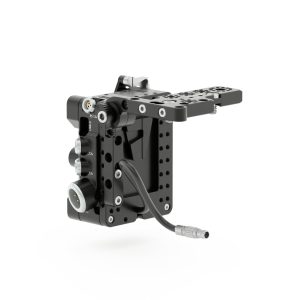

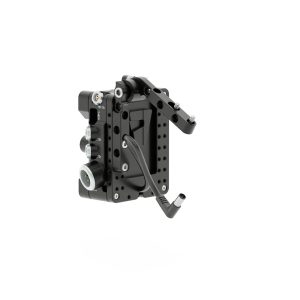

• Swivel Mount I
  For mounting the Micro Power Box to Canon C400, C500 II, C300 III and the Black Magic PYXIS 6K, 12K (with additional cheese plate). Features 210° micro rosette swivel with M6 Finger screw and several M4 Mounting holes.

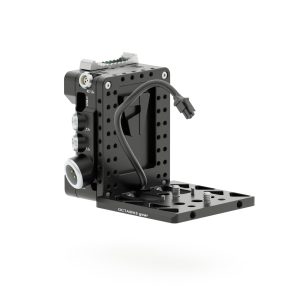

• Riser Plate EMBER S5K, S2.5K
  Positions the camera to the correct 15mm rod height on the SC Bottom Interface Plate EMBER, RED V-RAPTOR

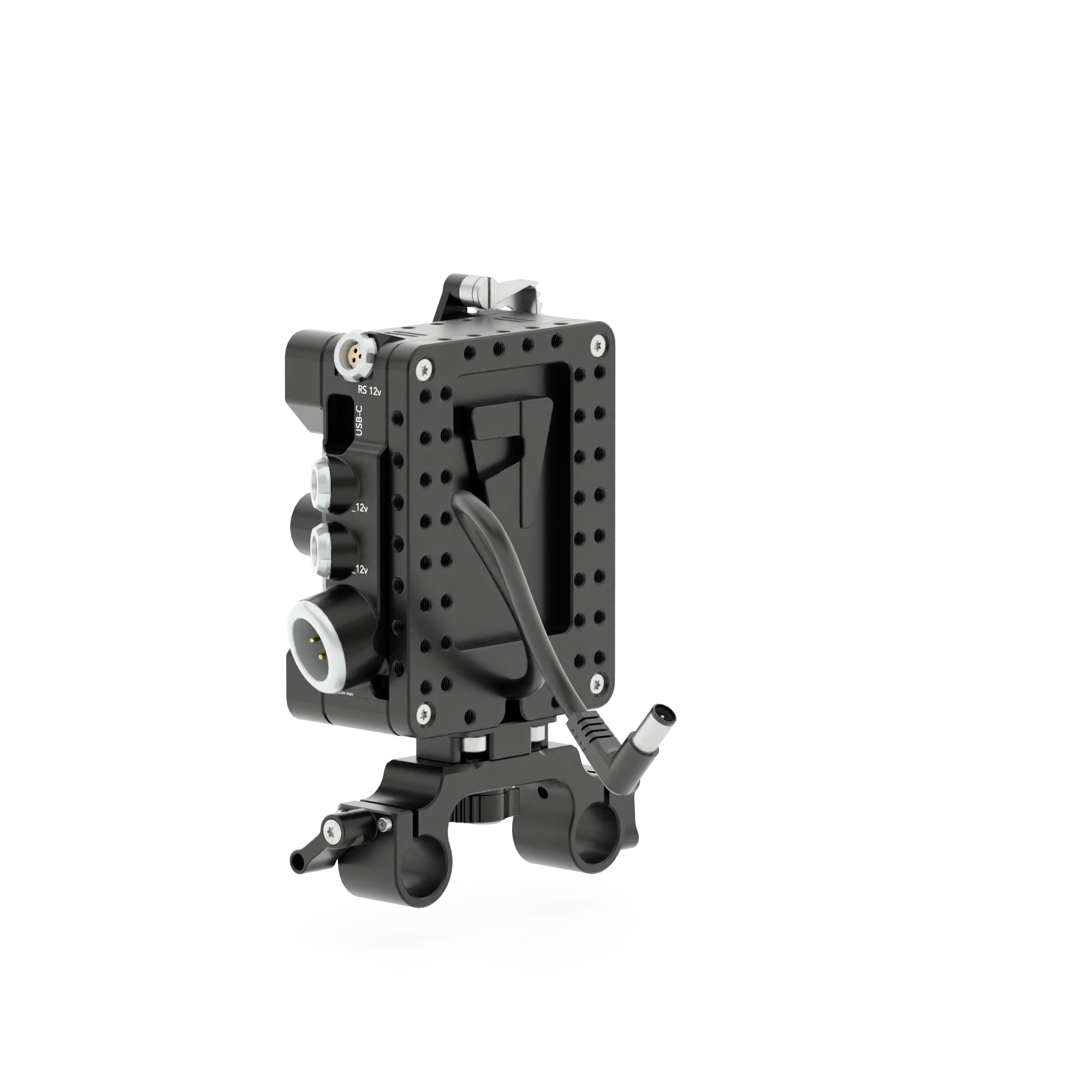

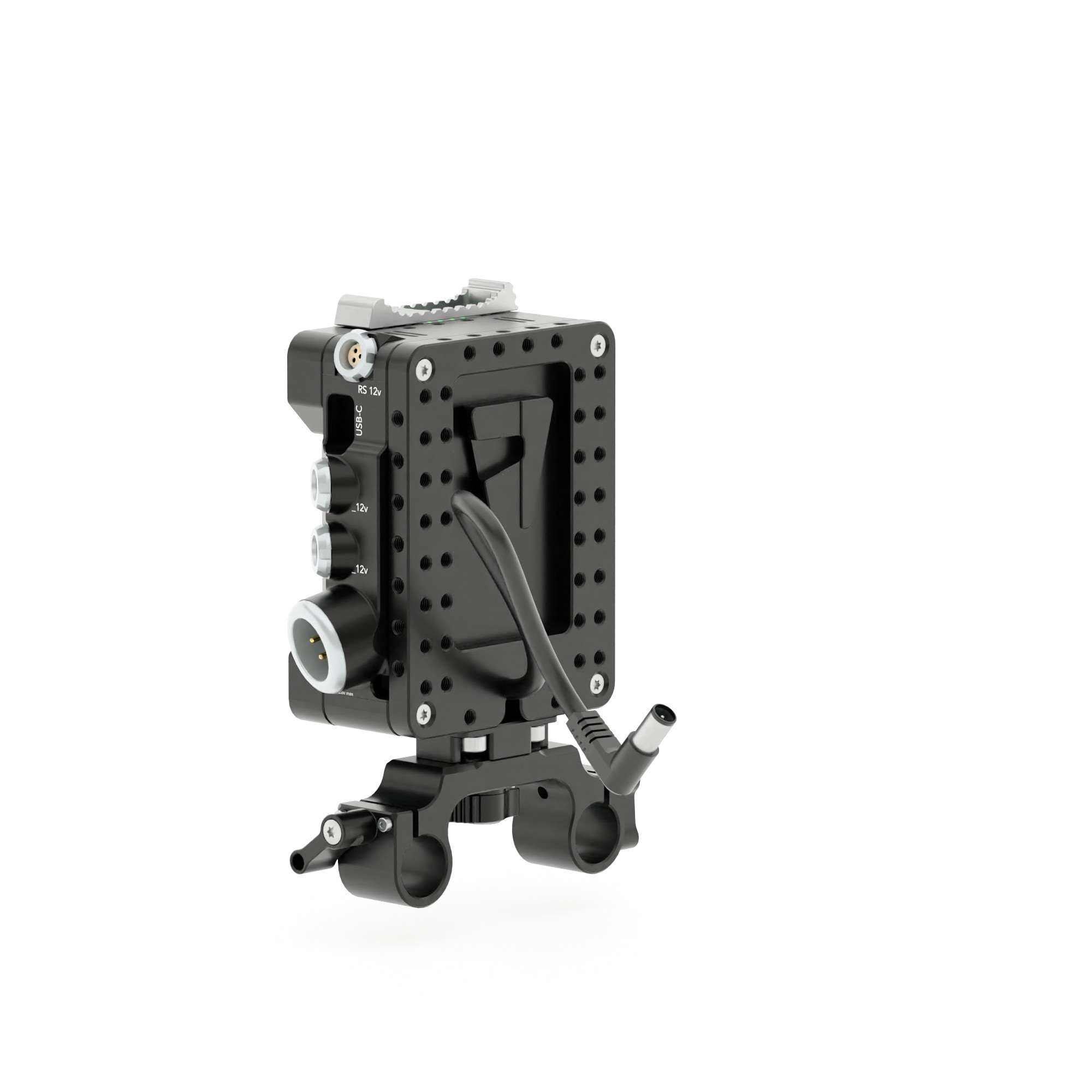

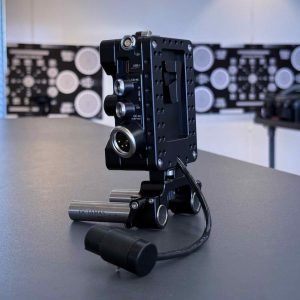

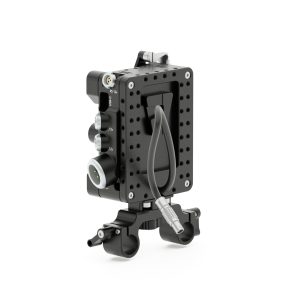

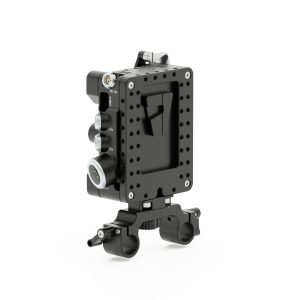

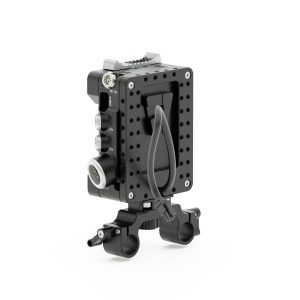

• 15mm Power Box Mount
  Compatible with any camera, Canon C80, C70, Sony FX9, etc.
• none
  Select this option if you have selected V-Mount Male as DC Connector
• V-Lock Base
  Mounting accessory for our Power Solutions or any V-Mount battery — easily attaches to the back, side, or top of the camera, or even to a monitor.
