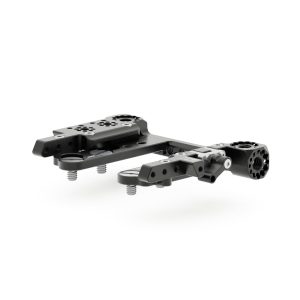

SC Top Interface Plate – Universal

• ARRI standard dove plates can easily be adjusted in fore/aft position allowing flexible use of Top Handles and/or accessories.
• Offers 3/8″ ARRI Pin-Lock mounting points with industry first 30° angle adjustment, several 1/4″ and M4 mounting threads.

All Top Interface Plate variants support the correct height for 15mm LW rod standard. (optional SC 15mm Rod Mount Interface required)

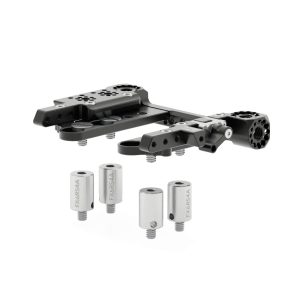

For cameras with an optical center closer to the top, an additional riser is included with the Top Interface Plate. The split, two-piece design allows for compact rigs without the riser.

Supported Cameras, Mounting Adapters:

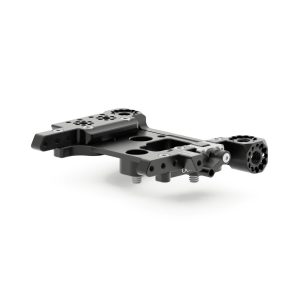

• Blackmagic PYXIS 6K, 12K
• Canon C400 (with Riser)

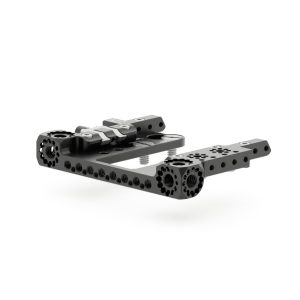

• Canon C300 III / C500
• Canon C80 (with Riser)
• Canon C70 (with Riser)

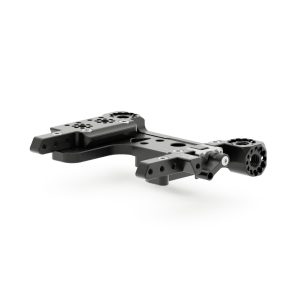

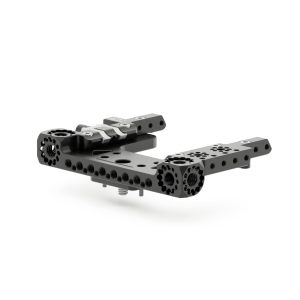

• Freefly EMBER S5K, S2.5K

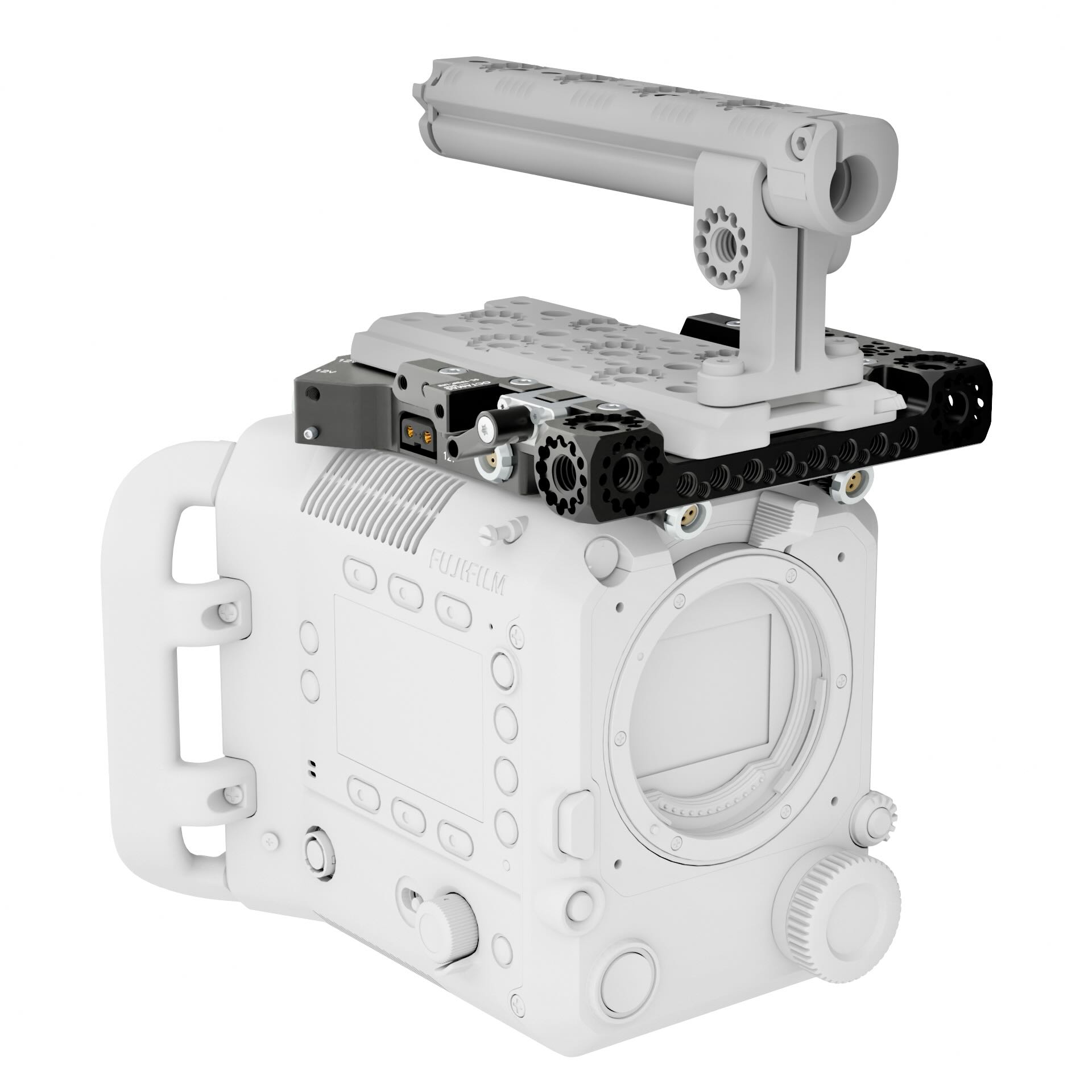

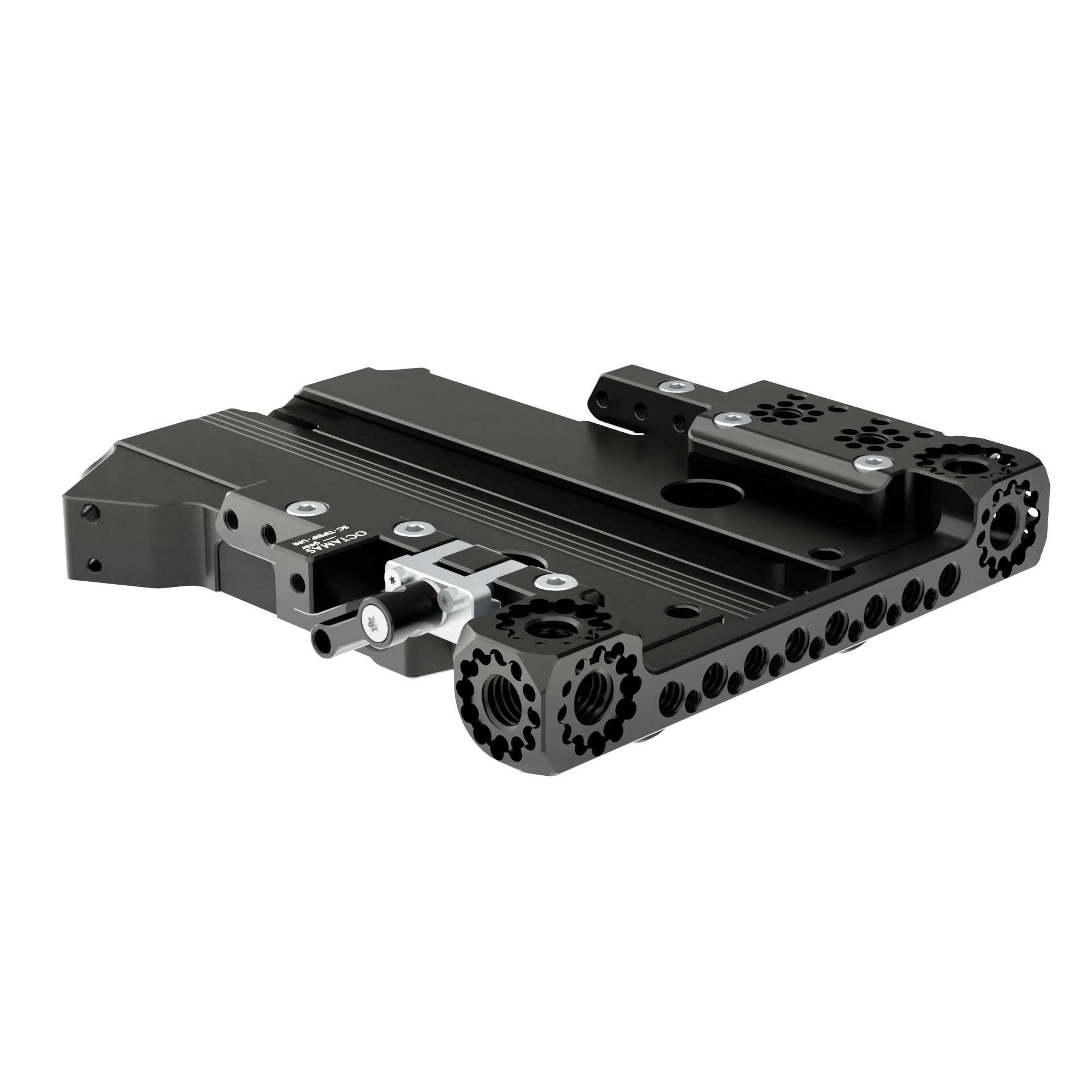

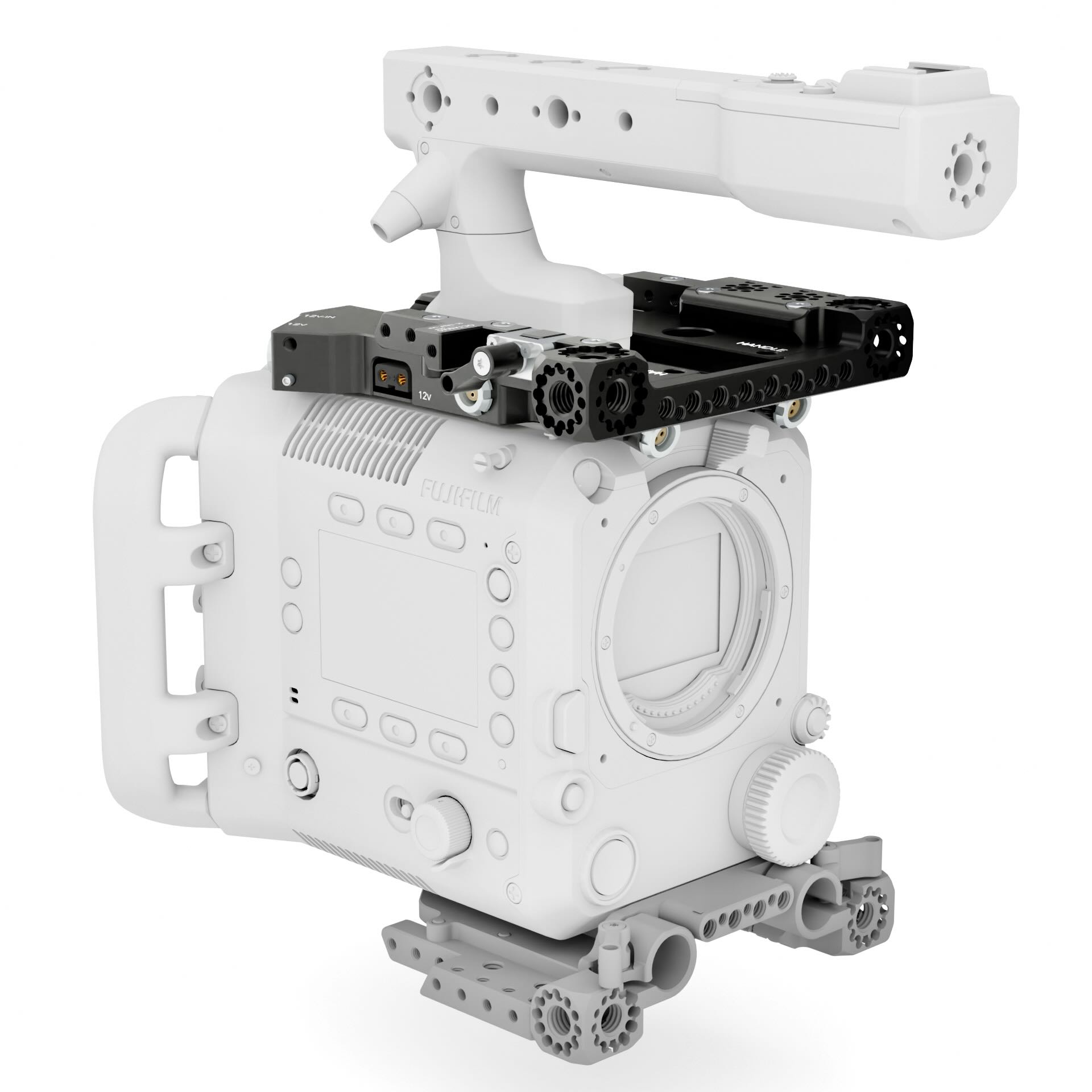

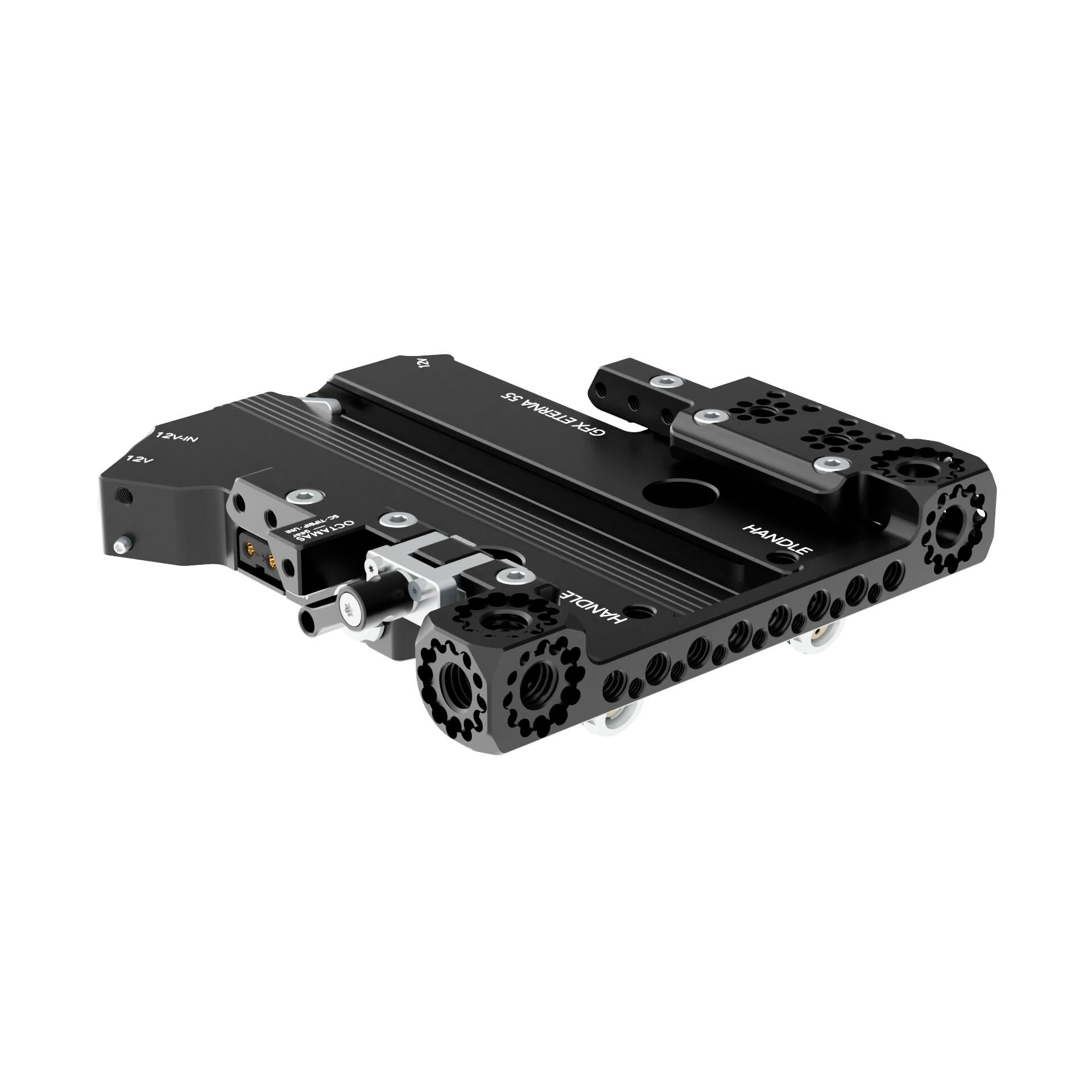

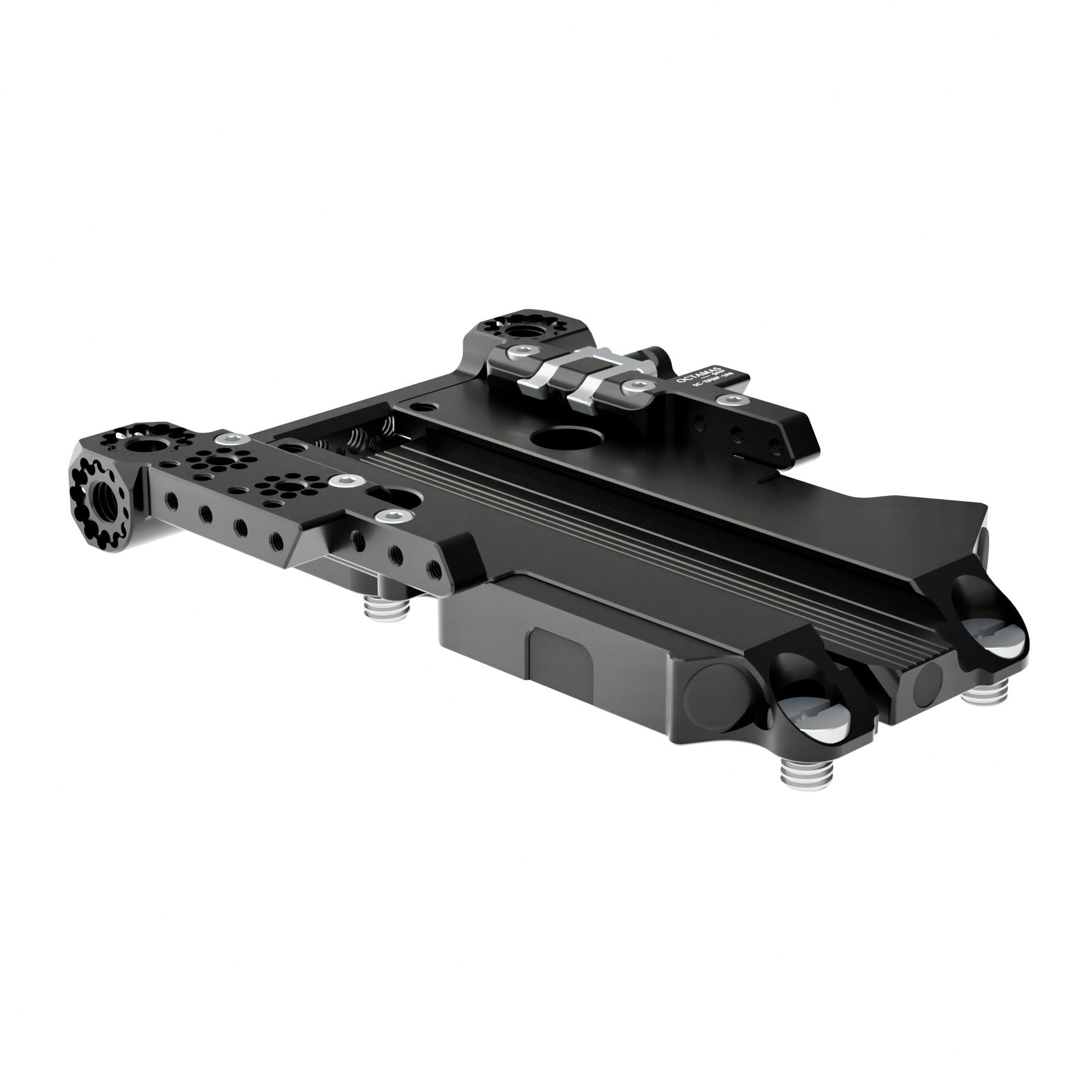

• Fujifilm GFX ETERNA

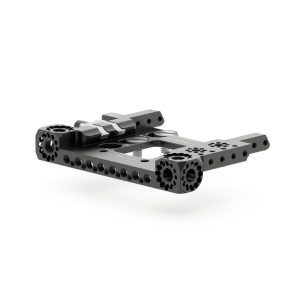

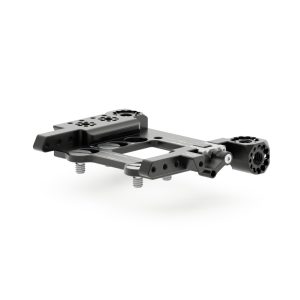

• Sony BURANO, VENICE 1+2, RIALTO 1+2 (with Riser)
• Sony BURANO (with Power Riser)

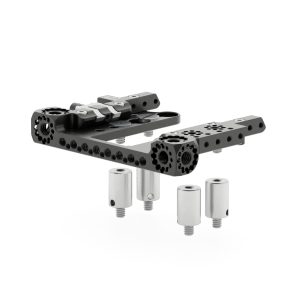

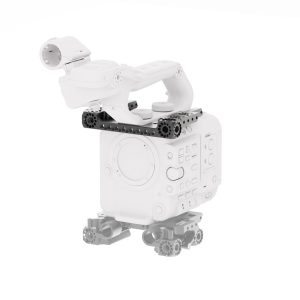

• Sony FX6 (with Riser)

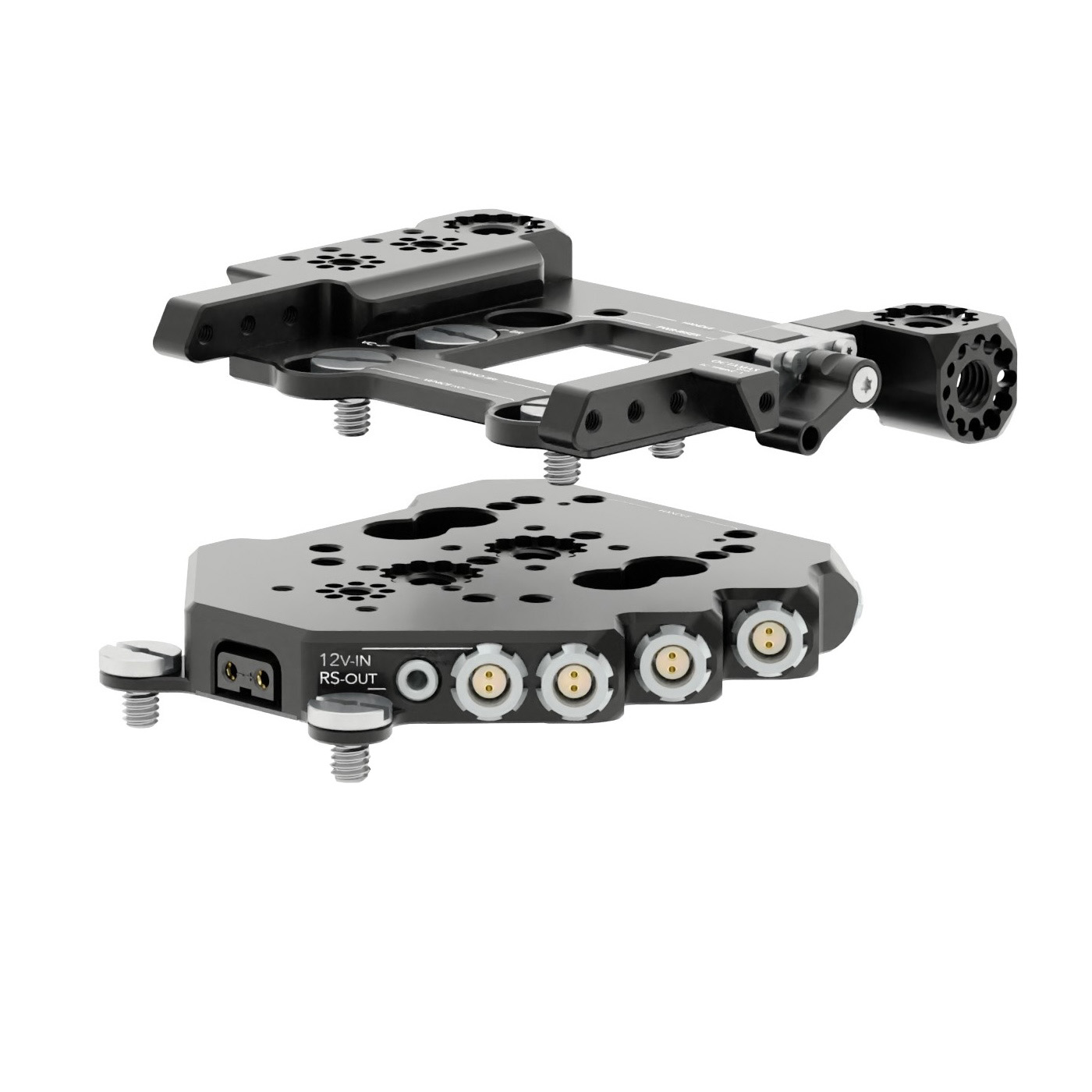

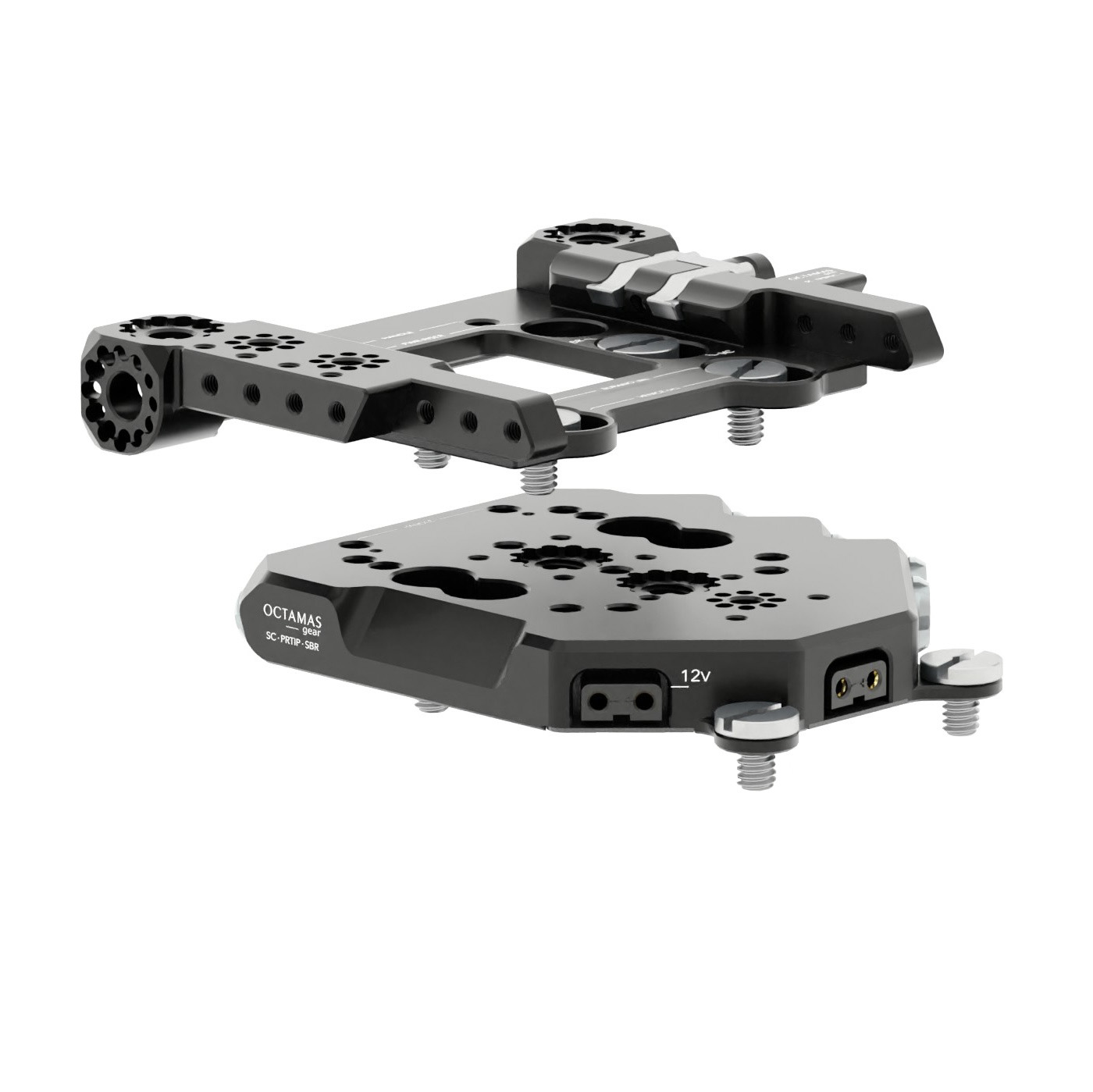

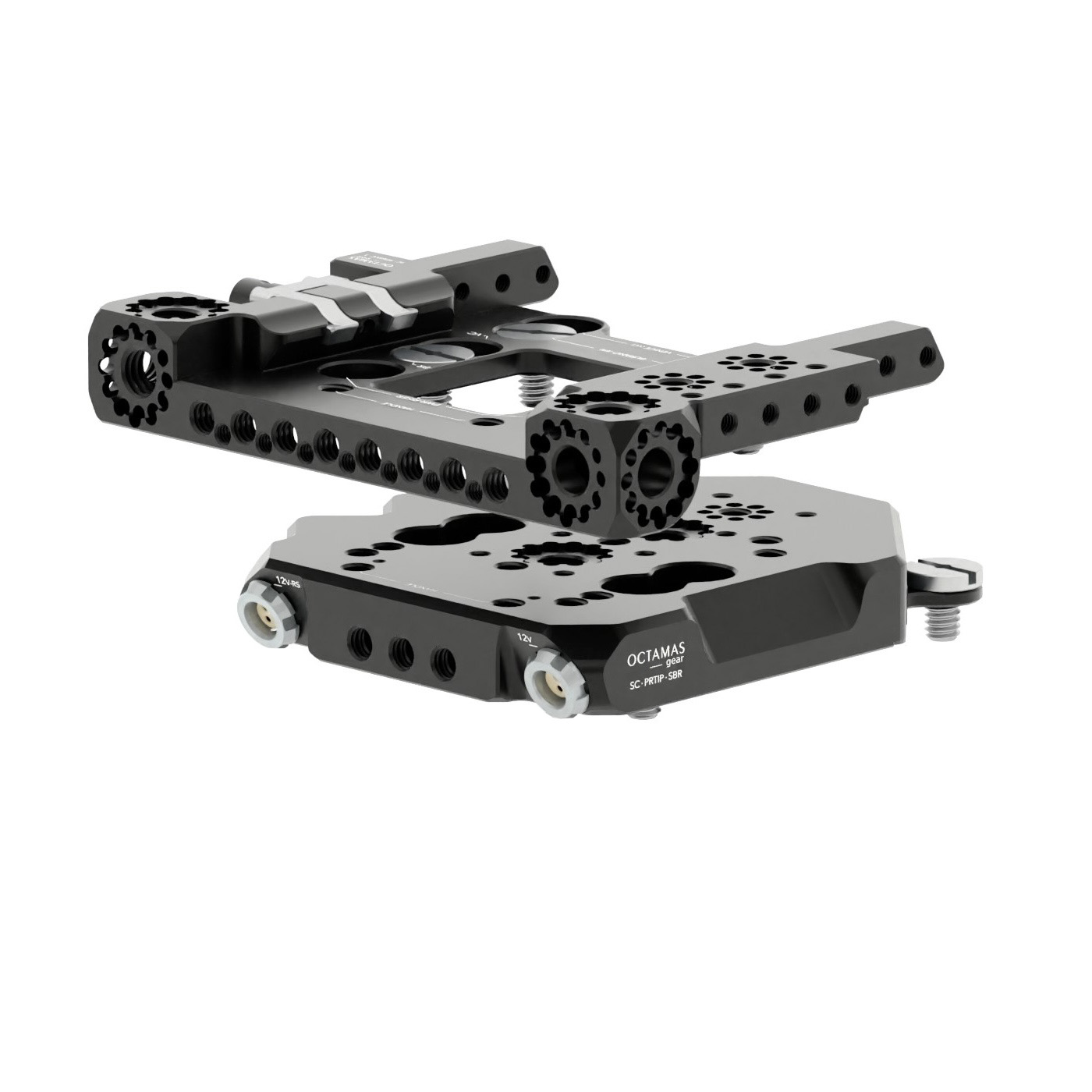

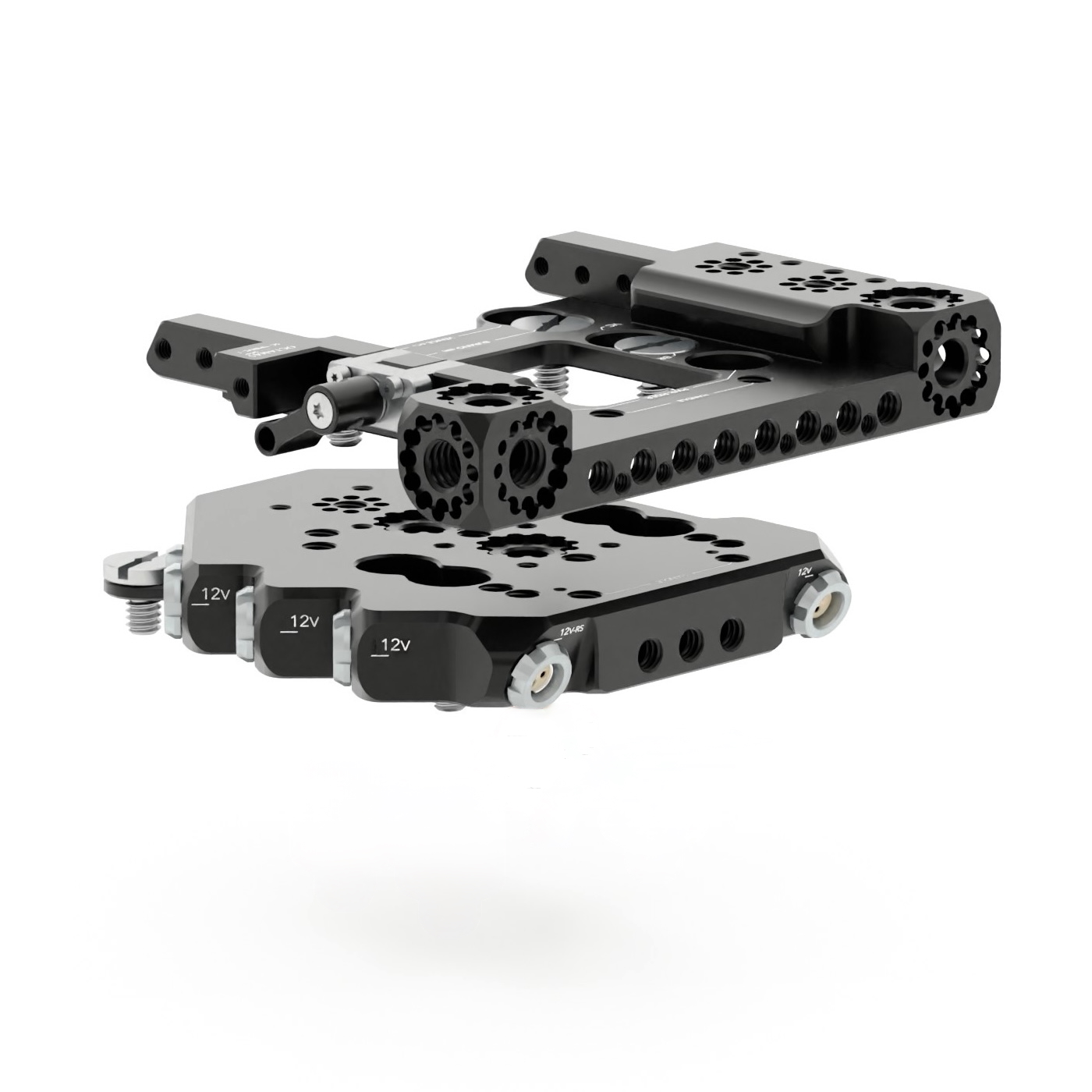

SC Power Riser TIP Sony BURANO

Allowing true optical center height with Sony BURANO when using top LW 15mm or Studio 15mm, 19mm rods. Flexible use of Top Handles and/or accessories. The Plate further offers 3/8″ ARRI Pin-Lock mounting points with industry first 30° angle adjustment, several 1/4″ and M4 mounting threads.

You can also use the Power Riser with Sony VENICE 1 and 2 – just keep in mind that it won’t maintain standard 15mm LW rod height in this configuration.

Connectors:
1x 3pin Fischer RS (12V) providing Trigger protocol
4x 2pin 0B AUX/PWR
2x D-Tap
1x 3.5mm Jack RS out, Schmitt + LANC Trigger protocol, optional Trigger cables available.
1x 2pin Power-In
