SC Blackmagic PYXIS 6K, 12K - Full Set

SC Blackmagic PYXIS 6K, 12K - Full Set - Image 2

SC Blackmagic PYXIS 6K, 12K - Full Set - Image 3

SC Blackmagic PYXIS 6K, 12K - Full Set - Image 4

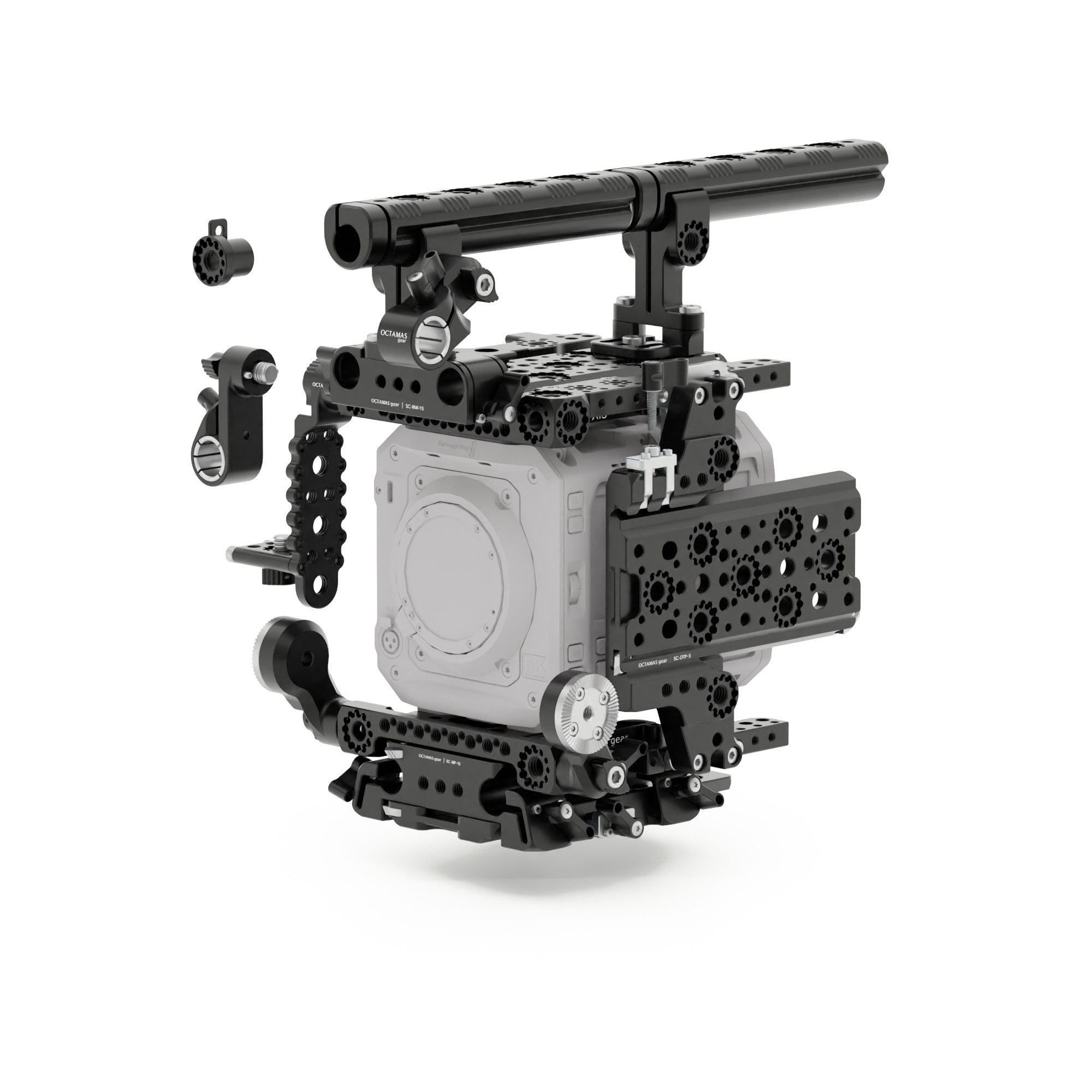

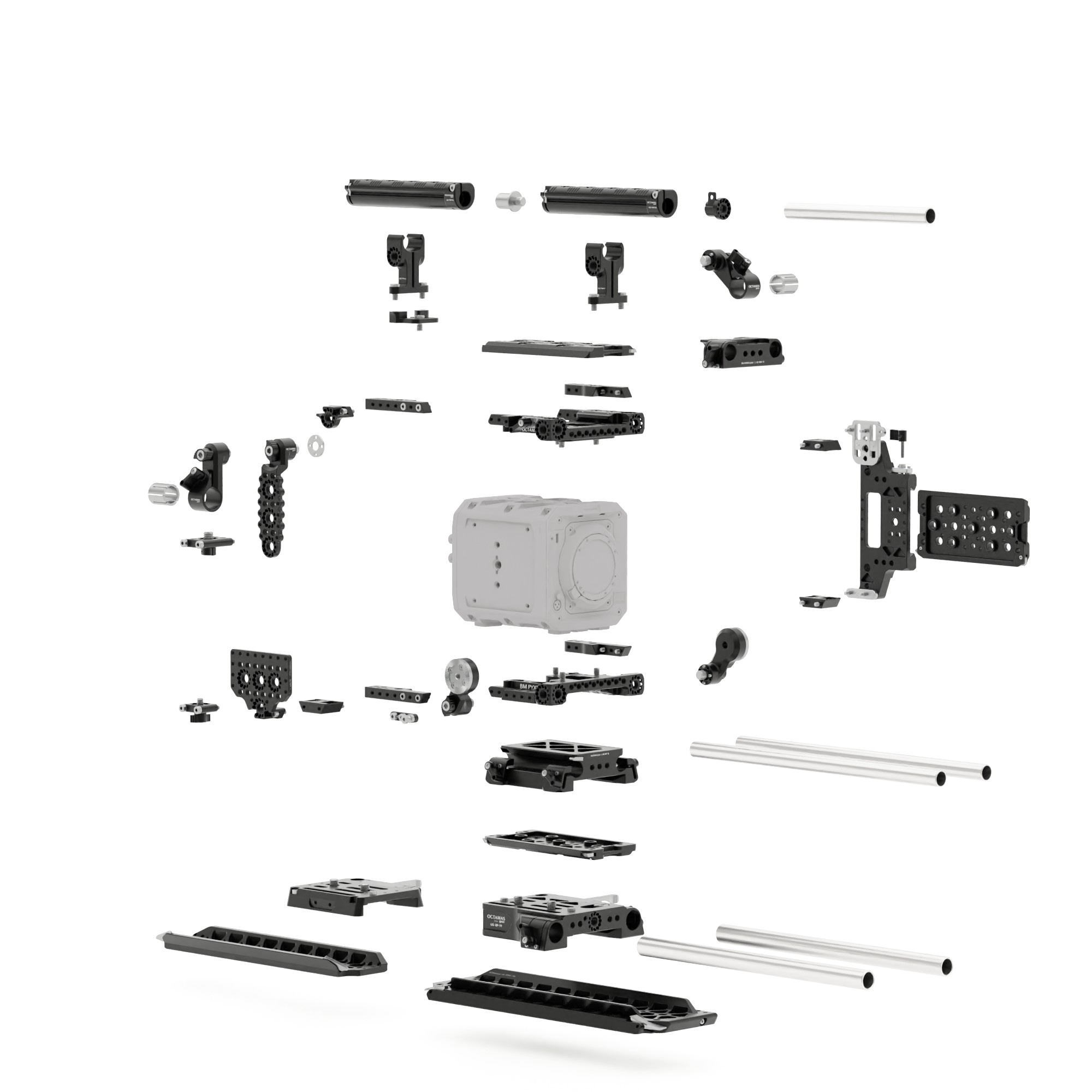

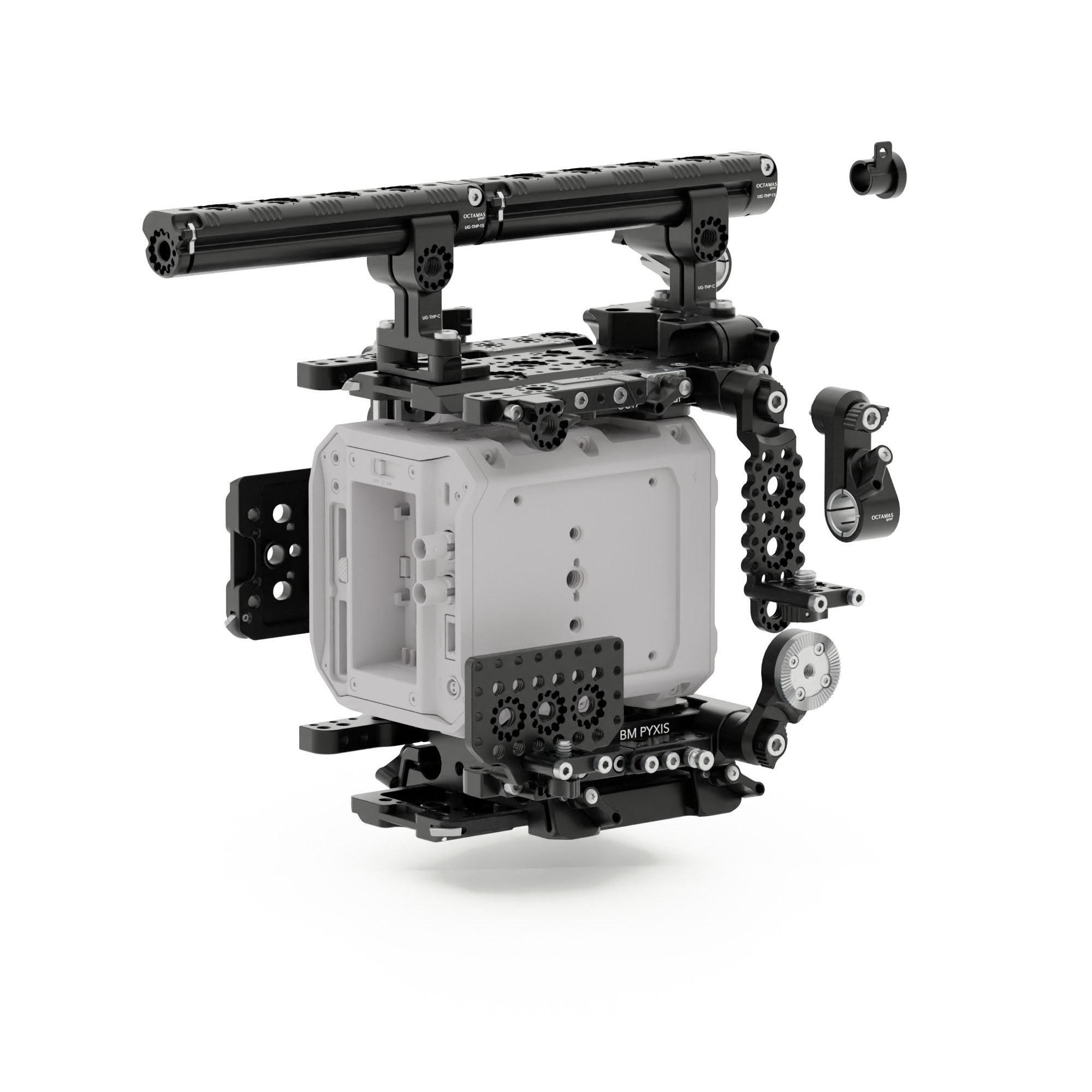

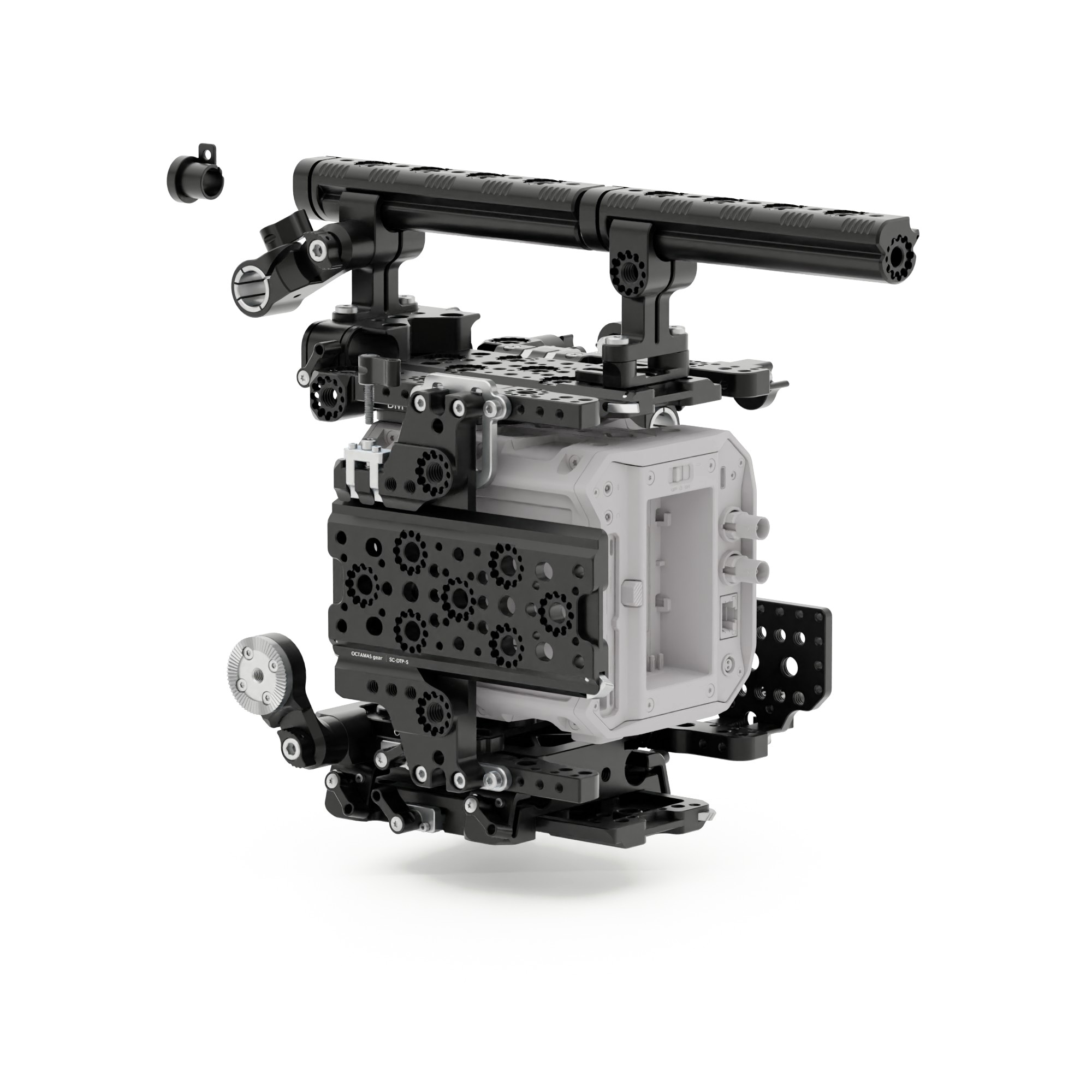

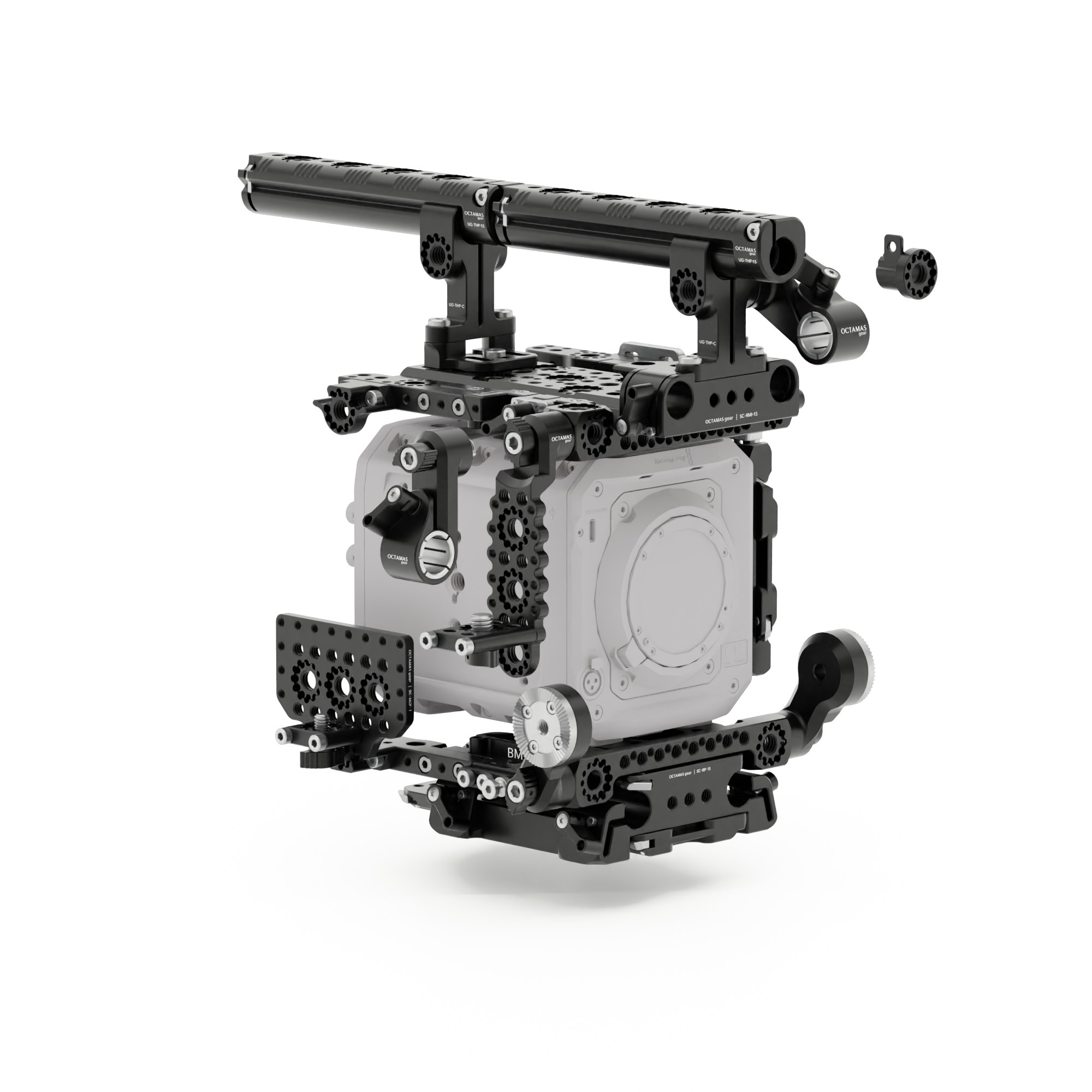

SC Blackmagic PYXIS 6K, 12K – Full Set

From: 2,702.00 $ excl. VAT

The SWISS cage Production packages are the professional support set-up for your camera of choice. Full Set.

Product

Quantity

SC-micro-PWR-mounts_V-Gold-Mount_OCTAMAS-gear00001

Optional - Micro Power Plate

Add for 419.00 $ excl. VAT

1

SC-micro-PB_V_GOLD_mount_OCTAMAS-gear00001

Optional - Power Box Pro Micro

Add for 730.00 $ excl. VAT

1

Power-Cable-2pin-OB-2pin-OB-12in-Og-34006155-00

Optional - Power Cable

Add for 60.00 $ – 68.00 $ excl. VAT each

SC Top Interface Plate-Universal-Og-00

SC Top Interface Plate - Universal

Mounting Adapters

Blackmagic PYXIS 6K, 12K

1

Focus-Hook-Adjustable-Og-49006864-04

Focus Hook - Adjustable

Available on backorder

1

SC-DTP-S_right

SC Dovetail Plate - 140

In stock ・

3

15mm mount_1

SC 15mm Rod Mount Interface

In stock ・

1

handgrip_pro_01

Top Handle Pro

In stock ・

1

grip_top_handle_pro_01

Bar Top Handle Pro

In stock ・

1

bracket_top_handle_pro_01

Bracket Top Handle Pro

In stock ・

1

Handles_Connector_01

Connector Top Handle Pro

In stock ・

1

Handgrip_Pro_Riser_01

Riser Top Handle Pro

In stock ・

1

15mm_twist_01

15mm Mounting Cheese Adapter I

In stock ・

1

SC Bottom Interface Plate-Universal-Og-00

SC Bottom Interface Plate - Universal

Mounting Adapters

Blackmagic PYXIS 6K, 12K

1

SC-15mm-Bridge-Interface-Plate_01

SC 15mm Interface Bridge Plate

In stock ・

1

SC-Wings_OCTAMAS-gear00000

SC Mounting Wings

Wing Variations

Medium Left/Right Pair

2

SC_15mm_Rod_Mount_Interface_01

19mm Rod Mount

In stock ・

1

19mm_Rod_Mount_90_01

19mm Rod Mount 90°

In stock ・

1

Reducer_01

19mm to 15mm Reducer

In stock ・

2

Pin-Lock_Spacer_00

Pin-Lock Spacer

In stock ・

1

Mounting_Cheese_Stick_01

Mounting Cheese Stick

In stock ・

1

SC-MCP-1_01

Mounting Cheese Plate I

In stock ・

1

SC-MCP-2_01

Mounting Cheese Plate II

In stock ・

1

SC-MCP-3_01

Mounting Cheese Plate III

In stock ・

1

SC-MCP-4_01

Mounting Cheese Plate IV

In stock ・

1

Spacer 01

Universal Spacer I

In stock ・

1

ts_3-8_short

3/8"-16 Thumb Screw - 12mm

In stock ・

1

1_4_Short

1/4"-20 Thumb Screw - 12mm

In stock ・

1

SIP_01

SC Side Interface Plate 90°

Camera Adapters

UNIVERSAL (see list)

1

Rossete_Adapter_01

Rosette Offset Adapter

In stock ・

2

UG-BP-19_left

Optional - 19mm Bridge Plate

Add for 398.00 $ excl. VAT

1

UG_BP_L_left

Optional - Bridge Plate Lite

Add for 248.00 $ excl. VAT

1

Available on backorder

Add to wishlist

SKU: 58006317 Categories: Sets, SWISS cage Tags: Blackmagic, Blackmagic Sets, Pyxis Sets

Description
Additional information

The SWISS cage Universe respects Industry Norms, allowing the most advanced and complex set-ups like no other camera support system. Switching and sharing vital components between camera systems is hassle free, making time consuming reconfiguration of set-ups a thing of the past.

SC Blackmagic PYXIS 6K, 12K – Full Set contains all recommended accessories for professional rigging.

Optional - Micro Power Plate

Package Content	1x Micro Power Plate with selected DC Connector and Mounting Option
Tech. Specifications	7075 Aluminum / Black anodizing – Micro Power Plate with Dumb V-Mount Size: 100x70x30mm Weight: 240g
Battery Mount	Micro V-Mount, Micro Gold-Mount
DC Connector	2pin OB
Mounting Option	Swivel Mount – PYXIS 6K, 12K

Optional - Power Box Pro Micro

Package Content	1x Power Box Pro Micro with selected DC Connector and Mounting Option
Tech. Specifications	7075 Aluminum / Black anodizing – Power Box Pro Micro with Dumb V-Mount Size: 103x88x51mm Weight: 396g
Battery Mount	Micro V-Mount, Micro Gold-Mount
DC Connector	2pin OB
Mounting Option	Swivel Mount – PYXIS 6K, 12K

Optional - Power Cable

Connectors, Length	2pin OB to 2pin OB – 12", 2pin OB to 2pin OB – 18", D-Tap to 2pin OB – 12", D-Tap to 2pin OB – 18"

SC Top Interface Plate - Universal

Package Content	1x Top Interface Plate 4x ¼" Secure Mounting Screws 2x ¼" Sunk Head Mounting Screws 1x M3 Allen Wrench 1x 3/16" Allen Wrench 1x Thumb-Screw
Tech. Specifications	10x ARRI accessory mounts (with 30° steps) ARRI standard dovetail clamp 9x ¼" Threads 10x ⅜" Threads 6x ¼" Mounting Screws 1x Focus Hook mounting threads (M4) 7075 Aluminum / Black hard anodizing – Size: 105x130x 20mm Weight: 220g

Focus Hook - Adjustable

Package Content	1x Focus Hook 1x M4 Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: mm Weight: g

SC Dovetail Plate - 140

Package Content	1x SC Dovetail Plate 140
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 140x68x10mm Weight: 116g

SC 15mm Rod Mount Interface

Package Content	1x SC 15mm Rod Mount Interface 2x Adjustable Thumbscrew 2x ¼" Mounting Screws
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 104x38x25mm Weight: 110g

Top Handle Pro

Package Content	1x Bar Top Handle Pro 1x Bracket Top Handle Pro 2x ¼" Mounting Screws 1x M3 Allen Wrench
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 150x48x65mm Weight: 200g

Bar Top Handle Pro

Package Content	1x Bar Top Handle Pro
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 150x28x26mm Weight: 150g

Bracket Top Handle Pro

Package Content	1x Bracket Top Handle Pro 2x ¼" Mounting Screws
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 58x48x20mm Weight: 50g

Connector Top Handle Pro

Package Content	1x Connector Top Handle Pro
Tech. Specifications	A2 Stainless Steel – Size: 32x20x20mm Weight: 30g

Riser Top Handle Pro

Package Content	1x Riser Top Handle Pro 1x 1/4" Mounting Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: 48x32x11mm Weight: 20g

15mm Mounting Cheese Adapter I

Package Content	1x 15mm Mounting Cheese Adapter I
Tech. Specifications	Thread: 18" / ARRI accessory mount Aluminum 7075 / black anodized – Size: 17x20x22.5mm Weight: 4g

SC Bottom Interface Plate - Universal

Package Content	1x Bottom Plate 4x ¼" Secure Mounting Screws 1x M3 Allen Wrench 1x 3/16" Allen Wrench 1x Thumb-Screw
Tech. Specifications	10x ARRI accessory mounts (with 30° mounting steps) -3 sides ARRI standard dovetail clamp 7x ¼" Threads 10x ⅜" Threads 4x ¼" Mounting Screws 1x Focus Hook mounting threads (M4) 7075 Aluminum / Black hard anodizing – Size: 126x130x 20mm Weight: 250g

SC 15mm Interface Bridge Plate

Package Content	1x SC 15mm Interface Bridge Plate 5x Thumb-Screw 1x M4 Screw
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 130x98x 34mm Weight: 335g

SC Mounting Wings

Package Content	1x SC Mounting Wings 4x M4 Mounting screws
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: xxmm Weight: g (pair)

19mm Rod Mount

Package Content	1x 19mm Rod Mount 1x M4 Finger Screw 1x 3/8 Finger Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: 60x45x20mm Weight: 50g

19mm Rod Mount 90°

Package Content	1x 19mm Rod Mount 90° 1x M4 Finger Screw 1x 3/8 Finger Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: 60x30x34mm Weight: 55g

19mm to 15mm Reducer

Package Content	1x 19mm to 15mm reducer
Tech. Specifications	A2 Stainless Steel – Size: 19x19x21mm Weight: 15g

Pin-Lock Spacer

Package Content	1x Pin-Lock Spacer
Tech. Specifications	Stainless Steel – Size: 20x20x4mm Diameter Weight: 5g

Mounting Cheese Stick

Package Content	1x Mounting Cheese Stick 1x 3/8" Thumb Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: 105x30x25mm Weight: 45g

Mounting Cheese Plate I

TECH. SPECIFICATIONS	Size: 61x77x18mm   Weight: 45g

Mounting Cheese Plate II

TECH. SPECIFICATIONS	Size: 32x20x18mm   Weight: 15g

Mounting Cheese Plate III

TECH. SPECIFICATIONS	Size: 35x27x7mm   Weight: 15g

Mounting Cheese Plate IV

TECH. SPECIFICATIONS	Size: 27x20x7mm   Weight: 10g

Universal Spacer I

TECH. SPECIFICATIONS	Size: 35x25x10mm   Weight: 15g

3/8"-16 Thumb Screw - 12mm

Package Content	1x ¼" Camera Screw
Tech. Specifications	Stainless Steel – Size: 21x20x12mm Weight: 9g

1/4"-20 Thumb Screw - 12mm

Package Content	1x ¼" Thumb Screw – 12mm
Tech. Specifications	Stainless Steel – Size: 21x20x12mm Weight: 6g

SC Side Interface Plate 90°

Package Content	1x SC Side Interface Plate 90° with selected Adapters 1x M3 Allen Wrench 1x Fingerscrew
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 160x67x 15mm Weight: 170g
Camera Adapters	UNIVERSAL (see list)

Rosette Offset Adapter

Package Content	1x 19mm Rod Mount 1x M4 Finger Screw 1x 3/8 Finger Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: 60x32x29mm Weight: 80g

Optional - 19mm Bridge Plate

Package Content	1x 19mm Bridge Plate 2x 3/8" Camera screws
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 157x125x33mm Weight: 435g

Optional - Bridge Plate Lite

Package Content	1x Bridge Plate Lite 2x 3/8" Camera screws 2x M4 Screws
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 108x107x 18mm Weight: 225g
