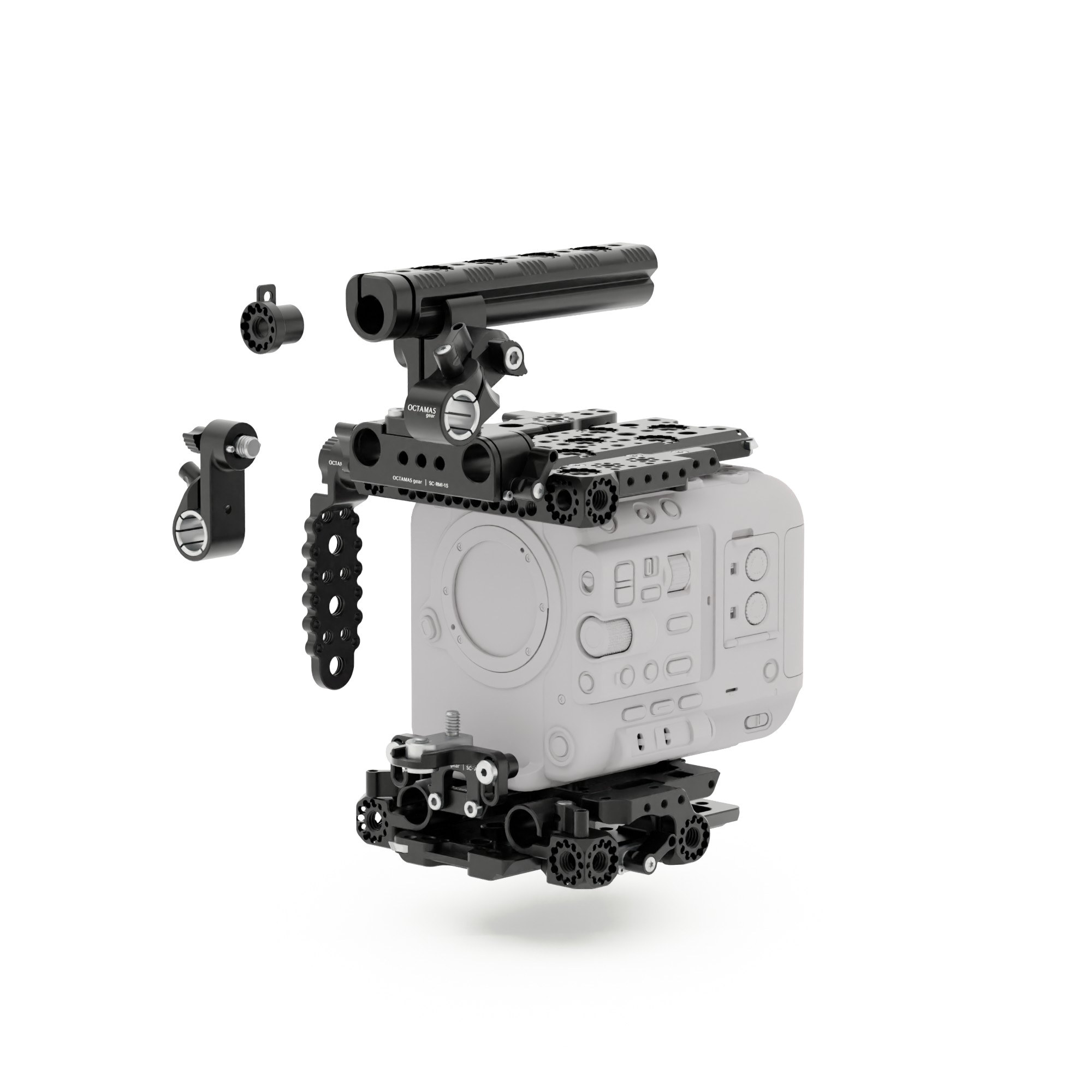

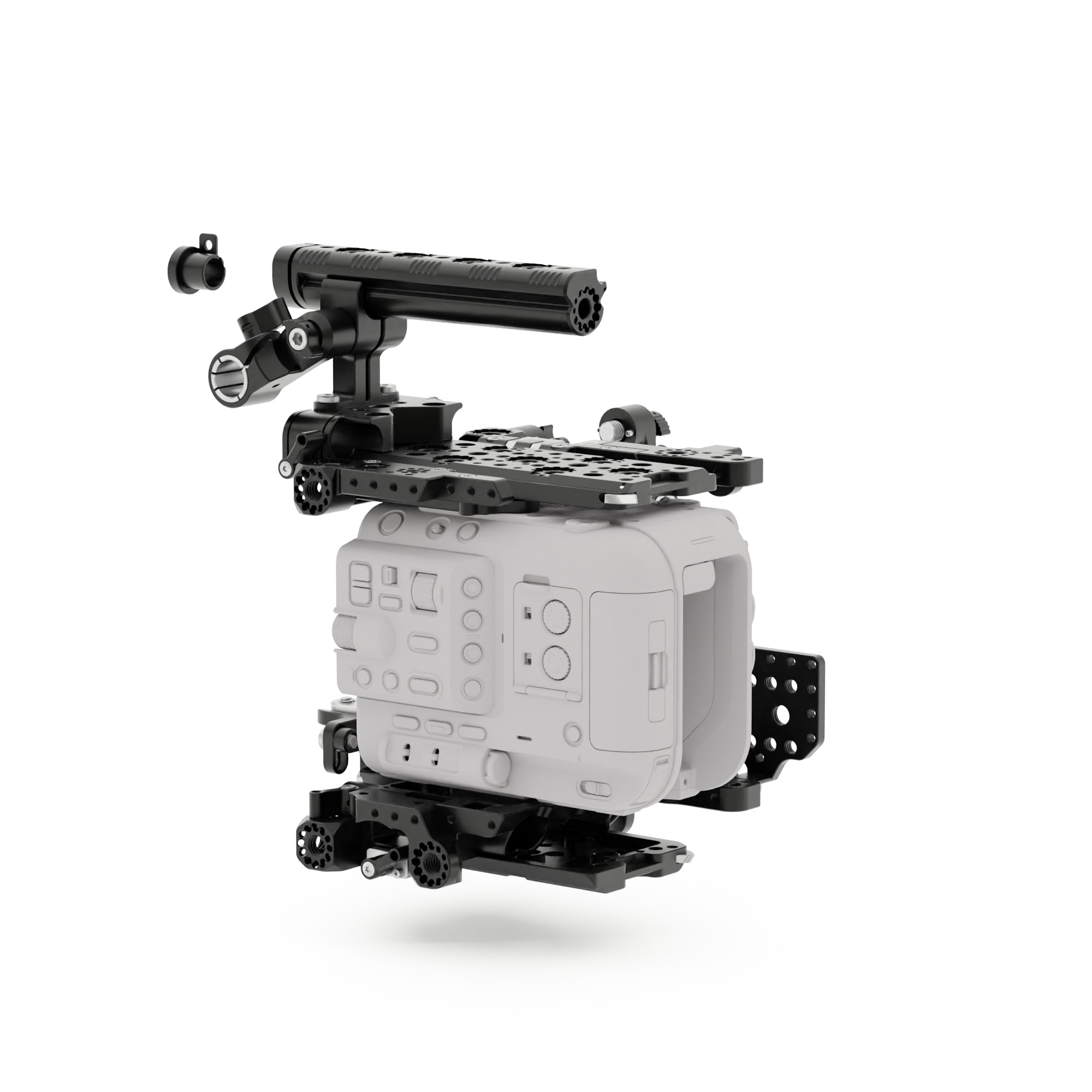

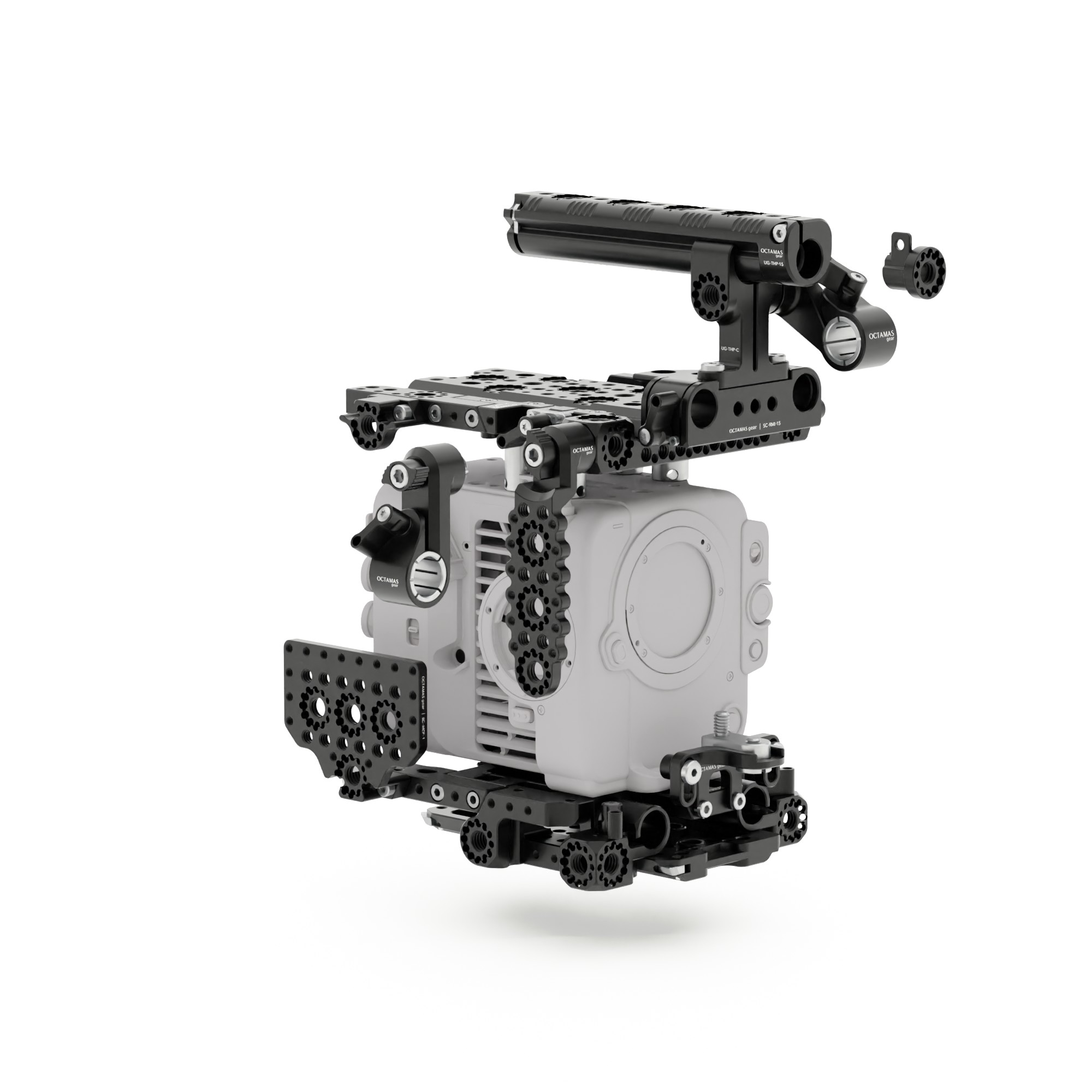

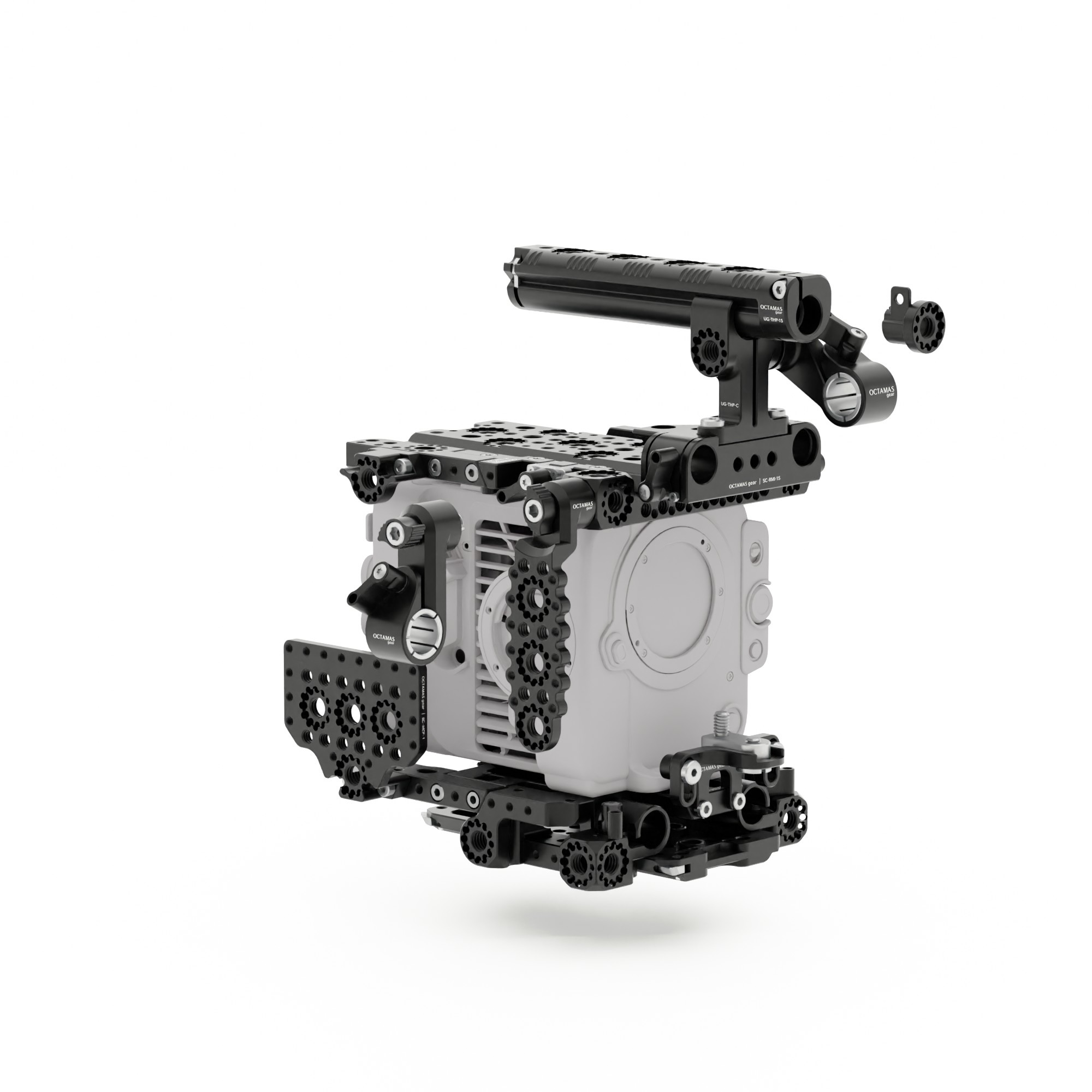

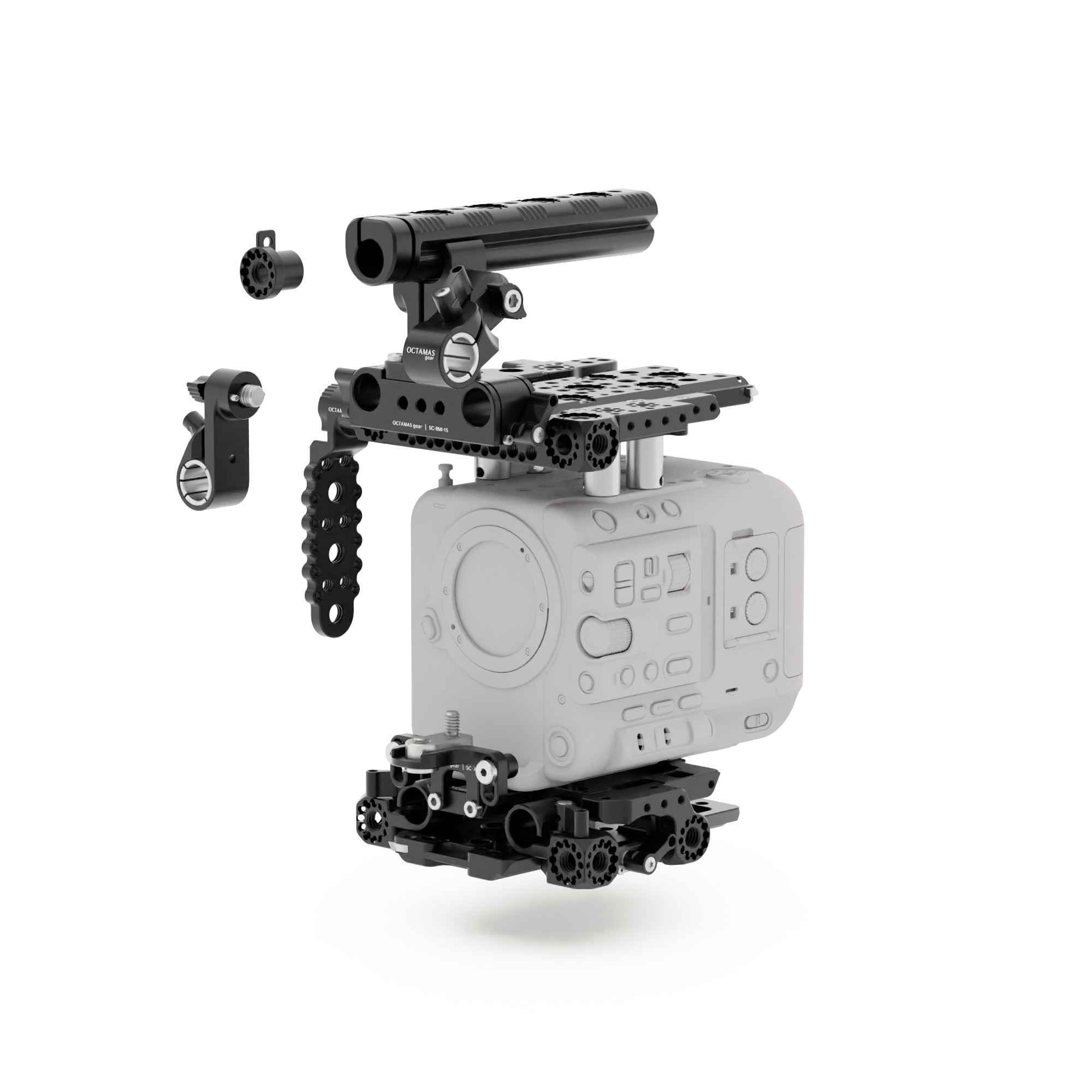

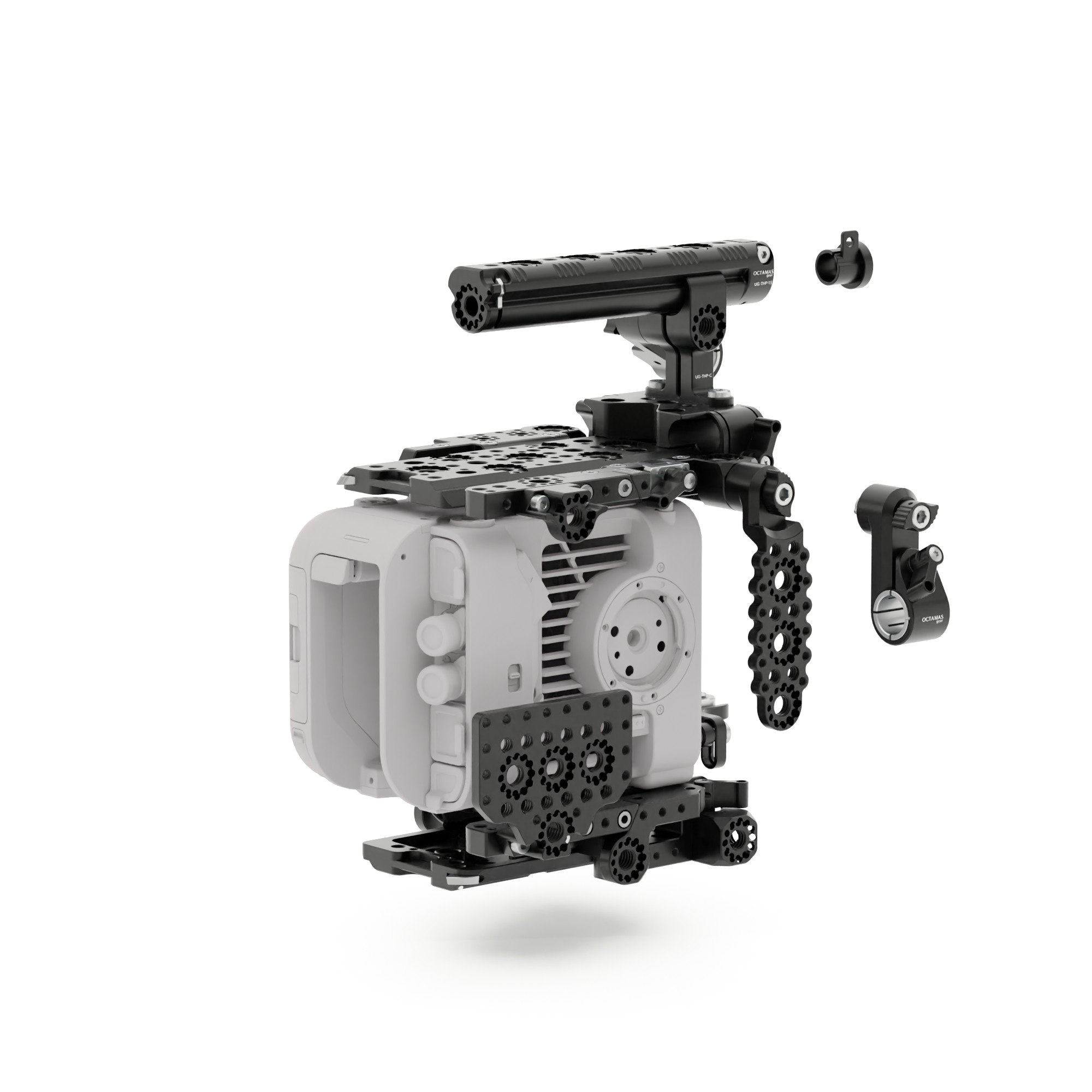

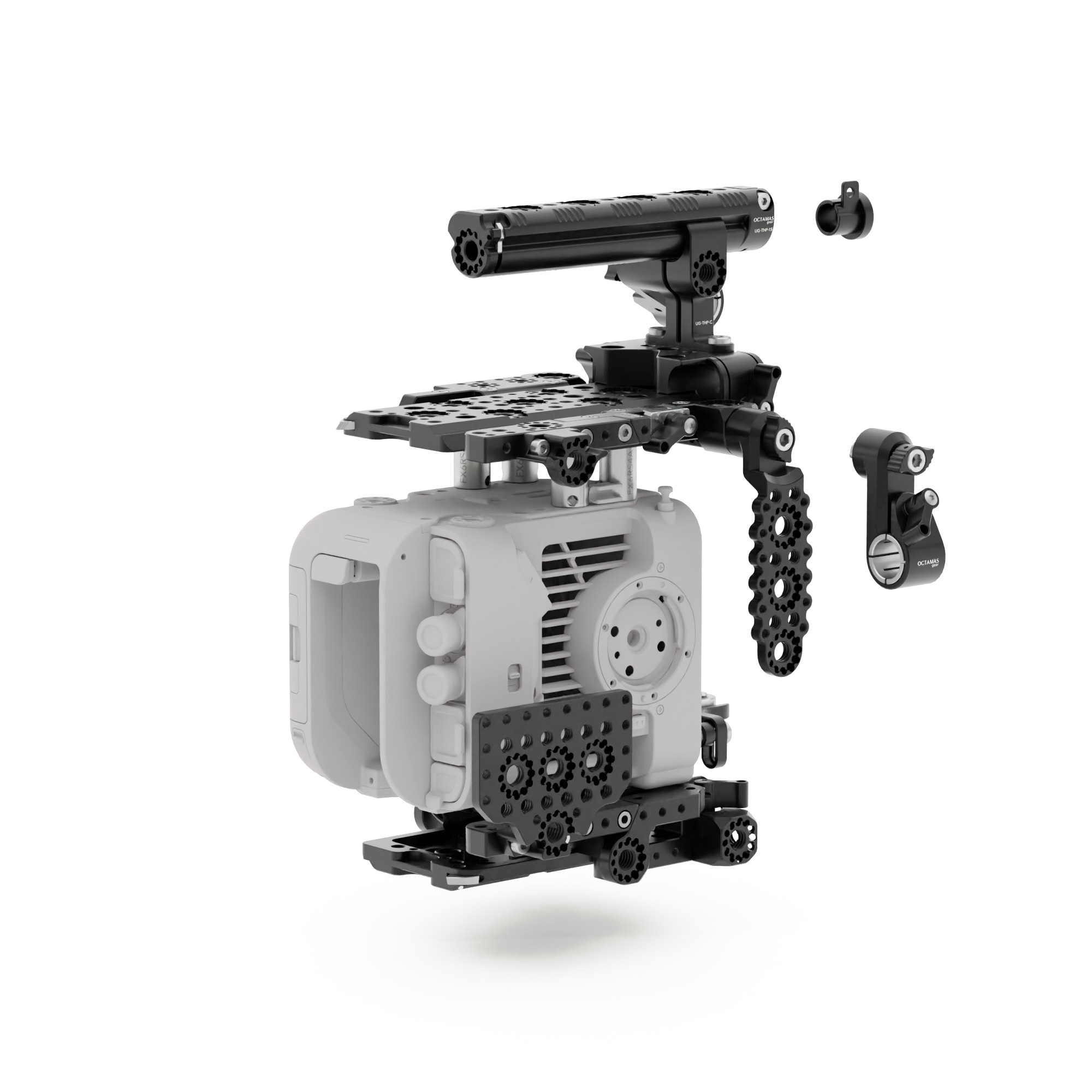

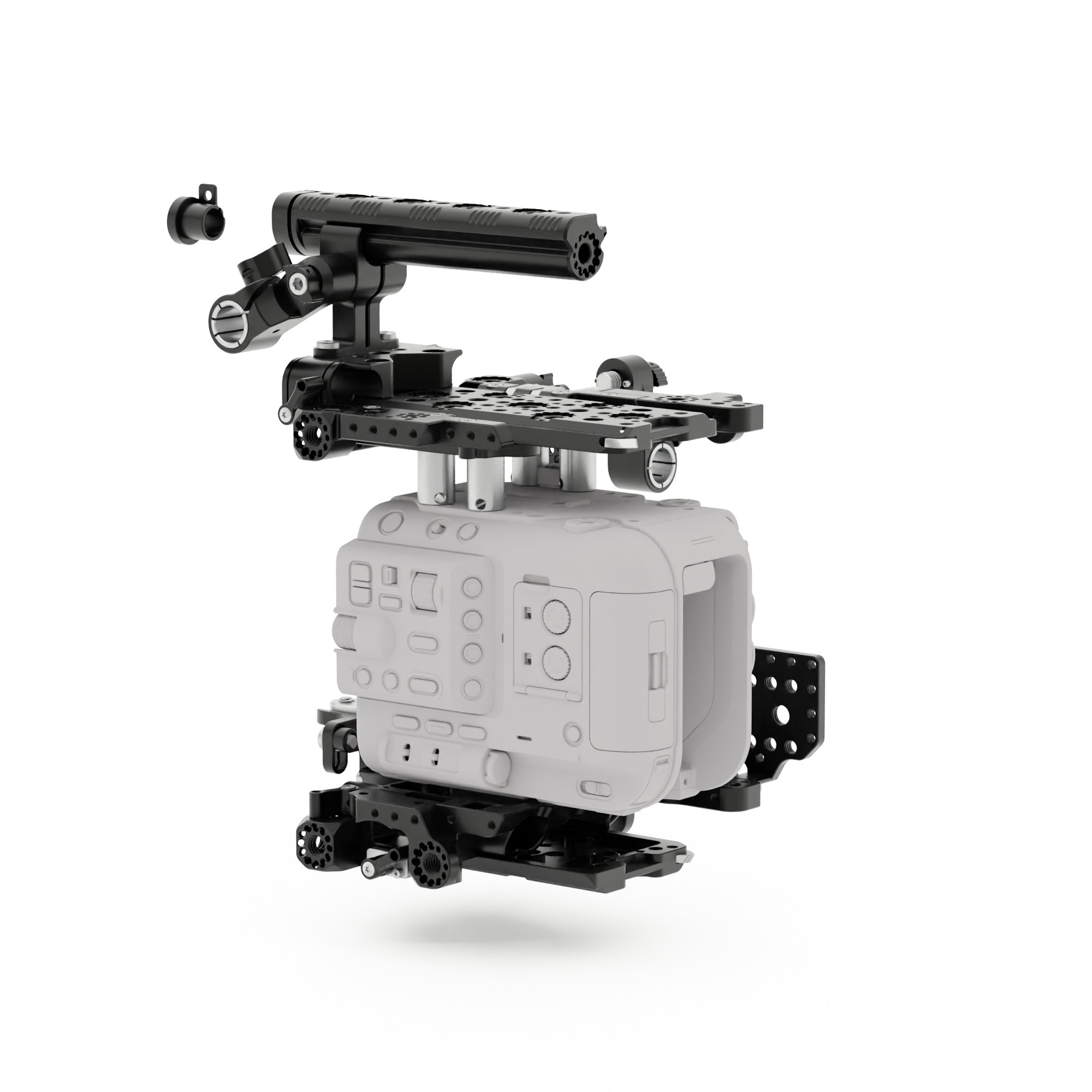

SC Sony FX6 – Advanced Set

Name: SC Sony FX6 - Advanced Set
SKU: 58006323
Availability: InStock

From: CHF 1'557.00 excl. VAT

The SWISS cage Production packages are the professional support set-up for your camera of choice. Advanced Set.

Product

Quantity

Power Insert 1_OCTAMAS gear_solo_ac_front

Optional - SC Power Insert I

Add for CHF 214.00 excl. VAT

Optional - Micro Power Plate

Add for CHF 326.00 excl. VAT

Optional - Power Box Pro Micro - Various

Add for CHF 595.00 excl. VAT

2_5_3_5mm-Jack-LANC-Trigger-Coiled-Cable-Right-Angle-18-40in-Og-16005914-00

Optional - Trigger Cable

Add for excl. VAT each

Power-Cable-2pin-OB-2pin-OB-12in-Og-34006155-00

Optional - Power Cable

Add for excl. VAT each

SC Top Interface Plate - Universal

Mounting Adapters

Sony FX6

Focus Hook - Adjustable

In stock ・

SC Dovetail Plate - 140

In stock ・

SC 15mm Rod Mount Interface

In stock ・

Top Handle Pro

In stock ・

15mm Mounting Cheese Adapter I

In stock ・

SC 15mm Top/Bottom Interface Plate - Multi

Camera Model

Sony FX6

Lens Mount Adapter Support Bracket

Version

with Riser, Spacer

SC Mounting Wings

Wing Variations

Medium Left/Right Pair

19mm Rod Mount

In stock ・

19mm Rod Mount 90°

In stock ・

19mm to 15mm Reducer

In stock ・

Pin-Lock Spacer

In stock ・

Mounting Cheese Stick

In stock ・

Mounting Cheese Plate I

In stock ・

Mounting Cheese Plate II

In stock ・

Universal Spacer I

In stock ・

Side-Mounting-Cheese-Plate-Universal-Standard-Og-16006532_04

Optional - Side Mounting Cheese Plate - Universal

Add for CHF 118.00 excl. VAT each

Optional - 19mm Bridge Plate

Add for CHF 342.00 excl. VAT

Optional - Bridge Plate Lite

Add for CHF 214.00 excl. VAT

In stock

Add to wishlist

SKU: 58006323 Categories: Sets, SWISS cage Tags: FX6, FX6 Sets, Sony, Sony Sets

Description
Additional information

The SWISS cage Universe respects Industry Norms, allowing the most advanced and complex set-ups like no other camera support system. Switching and sharing vital components between camera systems is hassle free, making time consuming reconfiguration of set-ups a thing of the past.

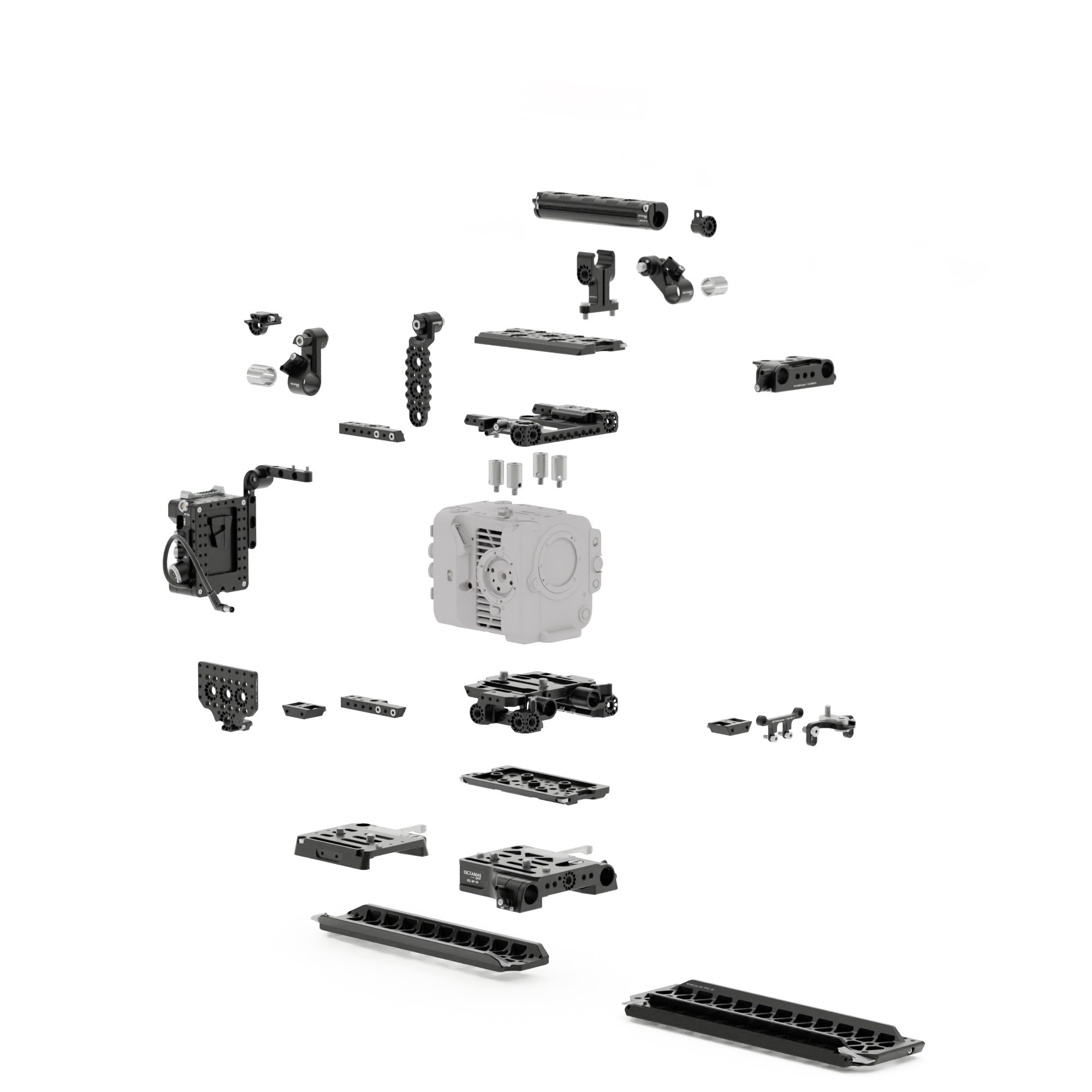

SC Sony FX6 – Advanced Set contains all recommended accessories for professional rigging – optional Power distribution.

Optional - SC Power Insert I

Package Content	1x Power Insert 2x M4 Mounting Screws
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 130x39x22mm Weight: 120g

Optional - Micro Power Plate

Package Content	1x Micro Power Plate with selected DC Connector and Mounting Option
Tech. Specifications	7075 Aluminum / Black anodizing – Micro Power Plate with Dumb V-Mount Size: 100x70x30mm Weight: 240g
Battery Mount	Micro V-Mount, Micro Gold-Mount
DC Connector	Sony FX6, FX9
Mounting Option	Swivel Mount – Canon C400, C500 II, C300 III, Sony FX6

Optional - Power Box Pro Micro - Various

Package Content	1x Power Box Pro Micro with selected DC Connector and Mounting Option
Tech. Specifications	7075 Aluminum / Black anodizing – Power Box Pro Micro with Dumb V-Mount Size: 103x88x51mm Weight: 396g
Battery Mount	Micro V-Mount, Micro Gold-Mount
DC Connector	Sony FX6, FX9
Mounting Option	Swivel Mount – Canon C400, C500 II, C300 III, Sony FX6

Optional - Power Cable

Connectors, Length	2pin OB to 2pin OB – 12", 2pin OB to 2pin OB – 18", D-Tap to 2pin OB – 12", D-Tap to 2pin OB – 18"

SC Top Interface Plate - Universal

Package Content

Canon C400
1x Top Interface Plate
2x Shims
6x M4" Mounting Screws
4x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Canon C300 III / C500 II
1x Top Interface Plate
6x M4" Mounting Screws
4x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Canon C70/C80
1x Top Interface Plate
6x M4" Mounting Screws
2x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Blackmagic PYXIS 6K, 12K
1x Top Interface Plate
6x M4" Mounting Screws
3x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Fujifilm GFX ETERNA / Fujifilm GFX ETERNA Power
1x Top Interface Plate
6x M4" Mounting Screws
4x 3/8" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Freefly EMBER S5K, S2.5K
1x Top Interface Plate
6x M4" Mounting Screws
1x 1/4" Captive Screw
2x M3 Mounting Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Sony FX6
1x Top Interface Plate
4x Shims
6x M4" Mounting Screws
4x 1/4" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Sony BURANO, VENICE 1+2, RIALTO 1+2 / w. Power Riser
1x Top Interface Plate
4x Shims
4x 1/4" Camera Screws
4x 3/8" Camera Screws
1x M3 Allen Wrench
1x M4 Ratcheting Thumb Screw
1x M4 Clamp option Screw

Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Size: 93x127x20mm
Weight: 220g

Focus Hook - Adjustable

Package Content	1x Focus Hook 2x M4 Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: mm Weight: g

SC Dovetail Plate - 140

Package Content	1x SC Dovetail Plate 140
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 140x68x10mm Weight: 110g

SC 15mm Rod Mount Interface

Package Content	1x SC 15mm Rod Mount Interface 2x 1/4" Captive Screws
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 38x104x25mm Weight: 115g

Top Handle Pro

Package Content	1x Bar Top Handle Pro 1x Bracket Top Handle Pro 2x 1/4" Captive Screws 1x M3 Allen Wrench
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 150x48x65mm Weight: 210g

15mm Mounting Cheese Adapter I

Package Content	1x 15mm Mounting Cheese Adapter I
Tech. Specifications	Aluminum 7075 / Black anodized – Size: 18x20x26mm Weight: 4g

SC 15mm Top/Bottom Interface Plate - Multi

PACKAGE CONTENT

ARRI Alexa 35
1x SC 15mm Top/Bottom Interface Plate
1x M3 Allen Wrench
1x M4 Clamp option Screw
4x M4 Mounting Screws

Sony VENICE 1+2/Sony BURANO/Sony RIALTO 1+2/Blackmagic URSA Cine 12K/17K
1x SC 15mm Top/Bottom Interface Plate
1x M3 Allen Wrench
1x M4 Clamp option Screw
2x 3/8" Camera Screw

Sony FX6
1x SC 15mm Top/Bottom Interface Plate
1x M3 Allen Wrench
1x M4 Clamp option Screw
1x 3/8" Camera Screw
1x 1/4" Camera Screw

all supported cameras
1x SC 15mm Top/Bottom Interface Plate
1x M3 Allen Wrench
1x M4 Clamp option Screw
2x 3/8" Camera Screw
1x 1/4" Camera Screw
4x M4 Mounting Screws

TECH. SPECIFICATIONS

7075 Aluminum / Black anodizing
–
Size: 110x127x32mm  Weight: 285g

Lens Mount Adapter Support Bracket

PACKAGE CONTENT

Standard version:
1x Lens Mount Adapter Support Bracket
1x 1/4" Camera Screw
2x 1/4" Captive Screw

Riser version:
1x Lens Mount Adapter Support Bracket
1x Adapter Riser I
1x 1/4" Camera Screw
2x 1/4" Captive Screw
2x M4 Mounting Screw

Riser + Spacer version:
1x Lens Mount Adapter Support Bracket
1x Adapter Riser I
1x Universal Spacer I
1x 1/4" Camera Screw
2x 1/4" Captive Screw
4x M4 Mounting Screw

TECH. SPECIFICATIONS

7075 Aluminum / Black
anodizing
–
Standard version:
Size: 29x60x24mm
Weight: 21g

Riser version:
Size: 35x60x39mm
Weight: 32g

Riser + Spacer version:
Size: 60x60x40mm
Weight: 47g

Version

with Riser, Spacer

SC Mounting Wings

Package Content

1x SC Mounting Wings
4x M4 Mounting screws

Tech. Specifications

7075 Aluminum / Black hard anodizing
–
Short Left/Right Pair
Size: 52x24x11mm (per Wing)
Weight: 36g (pair)

Short Power Box Left/Right Pair
Size: 72x25x18mm (per Wing)
Weight: 48g (pair)

Medium Left/Right Pair
Size: 78x20x11mm (per Wing)
Weight: 55g (pair)

Long Left/Right Pair
Size: 112x23x11mm (per Wing)
Weight: 78g (pair)

Long Power Box Left/Right Pair
Size: 122x23x11mm (per Wing)
Weight: 82g (pair)

19mm Rod Mount

Package Content	1x 19mm Rod Mount 1x 3/8 Thumb Screw 1x M4 Ratcheting Thumb Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: 60x35x20mm Weight: 50g

19mm Rod Mount 90°

Package Content	1x 19mm Rod Mount 90° 1x 3/8 Thumb Screw 1x M4 Ratcheting Thumb Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: 60x30x34mm Weight: 55g

19mm to 15mm Reducer

Package Content	1x 19mm to 15mm reducer
Tech. Specifications	A2 Stainless Steel – Size: Ø19x21mm Weight: 5g

Pin-Lock Spacer

Package Content	1x Pin-Lock Spacer
Tech. Specifications	Stainless Steel – Size: Ø20 × 4 mm Weight: 5g

Mounting Cheese Stick

Package Content	1x Mounting Cheese Stick 1x 3/8" Thumb Screw
Tech. Specifications	7075 Aluminum / Black anodizing – Size: 105x30x25mm Weight: 50g

Mounting Cheese Plate I

package content	1x Mounting Cheese Plate 2x M4 Mounting Screws
TECH. SPECIFICATIONS	7075 Aluminum / Black anodizing – Size: 18x77x61mm   Weight: 45g

Mounting Cheese Plate II

Package Content	7075 Aluminum / Black anodizing – 1x Mounting Cheese Plate 2x M4 Mounting Screws
TECH. SPECIFICATIONS	Size: 18x32x20mm   Weight: 15g

Universal Spacer I

package content	1x Universal Spacer 2x M4 Mounting Screws
TECH. SPECIFICATIONS	7075 Aluminum / Black anodizing – Size: 24x35x10mm   Weight: 15g

Optional - Side Mounting Cheese Plate - Universal

Package Content

1x Side Mounting Cheese Plate
2x 3/8" Screws

Tech. Specifications

7075 Aluminum / Black anodizing
–
Size:
Min. 160 / max. 200 x 31 x 14 mm
Min. 140mm / max. 180mm Center-to-center thread distance (mounting to camera)

Weight:
Standard: 84g
Rosette: 108g
Module Standard: 42g
Module Rosette: 66g

Version

Rosette

Optional - 19mm Bridge Plate

Package Content	1x 19mm Bridge Plate 2x 3/8" Camera screws 1x M3 Allen Wrench
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 110x157x32mm Weight: 435g

Optional - Bridge Plate Lite

Package Content	1x Bridge Plate Lite 2x 3/8" Camera screws 2x M4 Screws 1x M3 Allen Wrench
Tech. Specifications	7075 Aluminum / Black hard anodizing – Size: 102x109x18mm Weight: 230g
